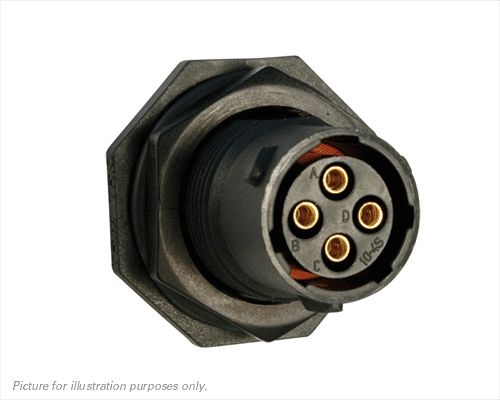

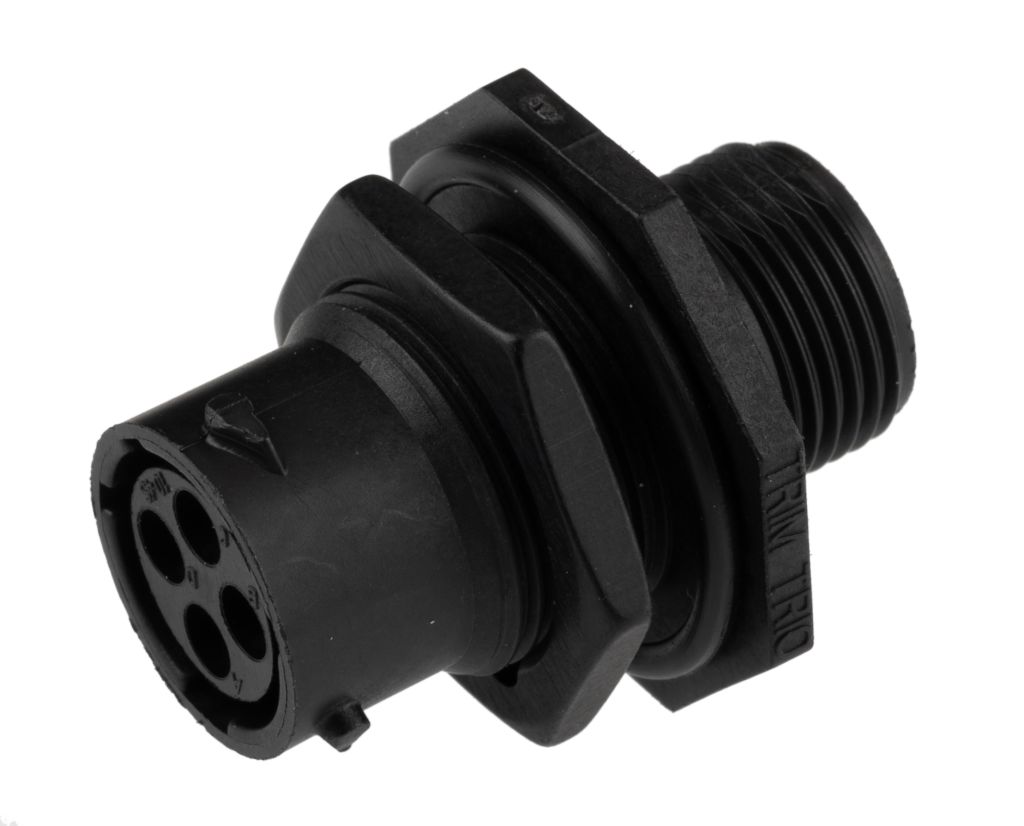

Souriau Panel Mount Circular Connector, 4 Contacts, Plug

RS Stock No.:
0191608
Mfr. Prt No.:
UTS7104S
Brand:
Souriau Sunbank by Eaton

Technical Reference

Legislation and Compliance

RoHS Status: Not Applicable

Statement of Conformity

RS Components
Statement of Conformity

This statement confirms that the product detailed below complies with the specifications currently published in the RS media and has been subject to the strict quality conditions imposed by RS Components’ internal management systems. Furthermore and where applicable, it confirms that all relevant semiconductor devices have been handled and packed under conditions that meet the administrative and technical requirements of ANSI/ESD S20.20 and EN61340-5-1 electrostatics control standards.

Compliant Product Details
RS stock number 0191608
Product description Souriau Panel Mount Circular Connector, 4 Contacts, Plug
Manufacturer / Brand Souriau Sunbank by Eaton
Manufacturer part number UTS7104S

The foregoing information relates to product sold on, or after, the date shown below.

RS COMPONENTS

Date Jul 20, 2024

RS Components Pte Ltd Robinson Road, P.O. Box 1582, Singapore 903132

Country of Origin: FR


Product Details

Souriau UTS

UTS Jam Nut Receptacles & Accessories

Note

3, 4, 7, 8 and 12 way use size 16 contacts
6, 10 and 19 way use size 20 contacts
Crimp Contacts must be ordered separately

Wire version for pin and socket contacts


Specifications

Attribute Value
Brand Souriau Sunbank by Eaton
Termination Method Crimp
Series UTS
Plug/Socket Plug
Housing Material Thermoplastic
Shell Size 10
Mating Type Bayonet
IP Rating IP68, IP69K
Number of Contacts 4
Contact Gender Female
Voltage Rating 125 V
Current Rating 13.0 A
Mounting Type Panel Mount
Body Orientation Straight
Maximum Operating Temperature +105 °C
Minimum Operating Temperature -40 °C
Checking stock...
VND
296,392.80
Out of stock
Price Each
Unit(s)Per Unit(VND)
1296,392.80
*price per unit indicative
