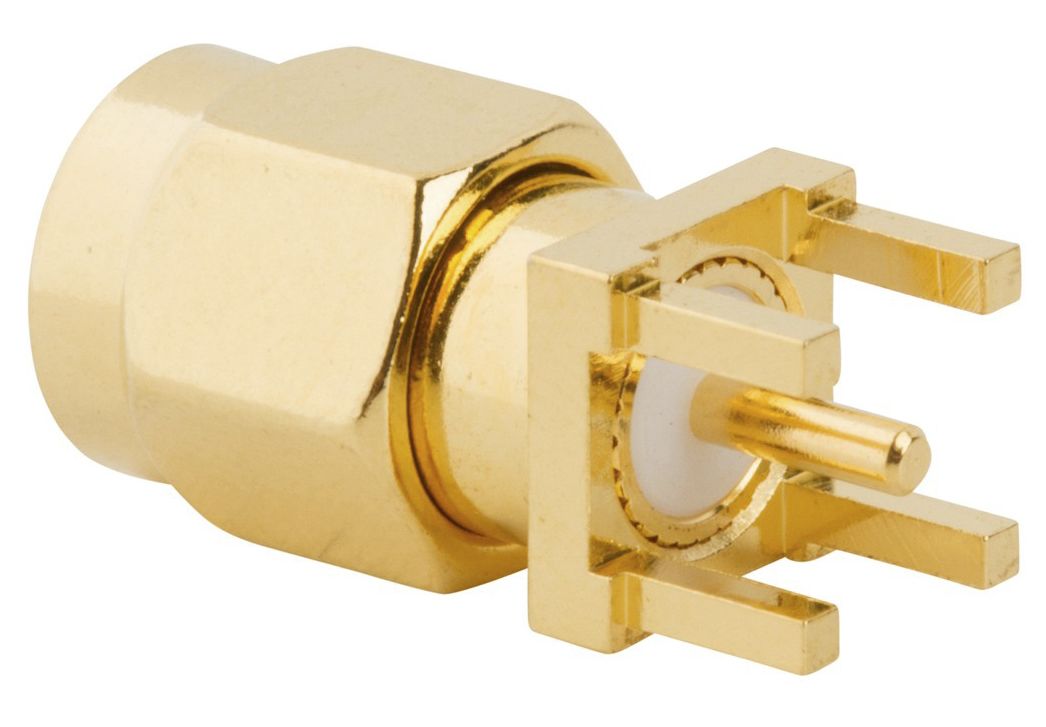

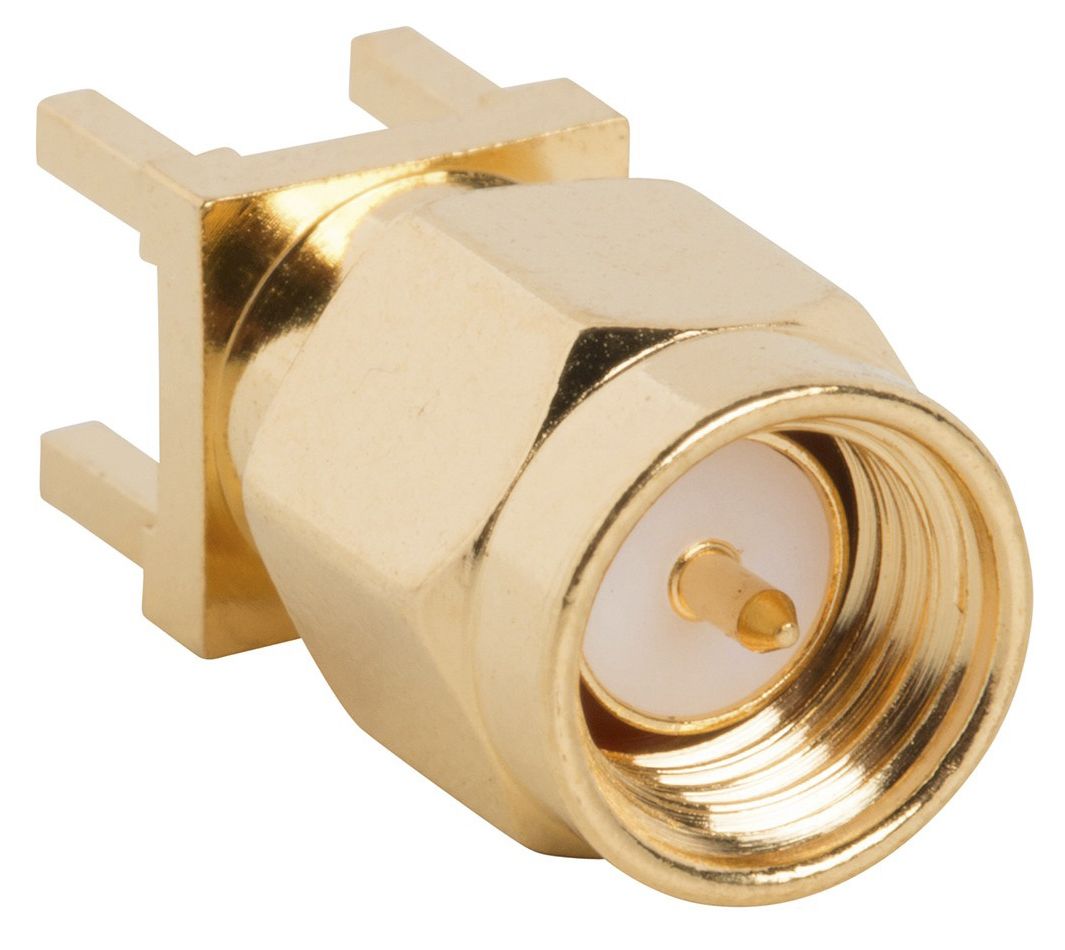

Amphenol RF 50Ω Straight PCB Mount, SMA Connector , Plug

RS Stock No.:
1440930
Mfr. Prt No.:
901-9895-RFX
Brand:
Amphenol RF

Technical Reference


Legislation and Compliance

RoHS Status: Not Applicable

Statement of Conformity

RS Components
Statement of Conformity

This statement confirms that the product detailed below complies with the specifications currently published in the RS media and has been subject to the strict quality conditions imposed by RS Components’ internal management systems. Furthermore and where applicable, it confirms that all relevant semiconductor devices have been handled and packed under conditions that meet the administrative and technical requirements of ANSI/ESD S20.20 and EN61340-5-1 electrostatics control standards.

Compliant Product Details
RS stock number 1440930
Product description Amphenol RF 50Ω Straight PCB Mount, SMA Connector , Plug
Manufacturer / Brand Amphenol RF
Manufacturer part number 901-9895-RFX

The foregoing information relates to product sold on, or after, the date shown below.

RS COMPONENTS

Date May 3, 2024

RS Components Pte Ltd Robinson Road, P.O. Box 1582, Singapore 903132


Product Details


Specifications

Attribute Value
Brand Amphenol RF
Gender Male
Coaxial Connector Type SMA Connector
Mounting Type PCB Mount
Impedance 50 Ω
Termination Method Solder
Body Orientation Straight
Size Standard
Bulkhead No
Operating Frequency 18 GHz
Body Plating Gold
Minimum Operating Temperature -65 °C
Maximum Operating Temperature +165 °C
Polarity Normal
Contact Material Brass
Contact Plating Gold
Mating Type Threaded
