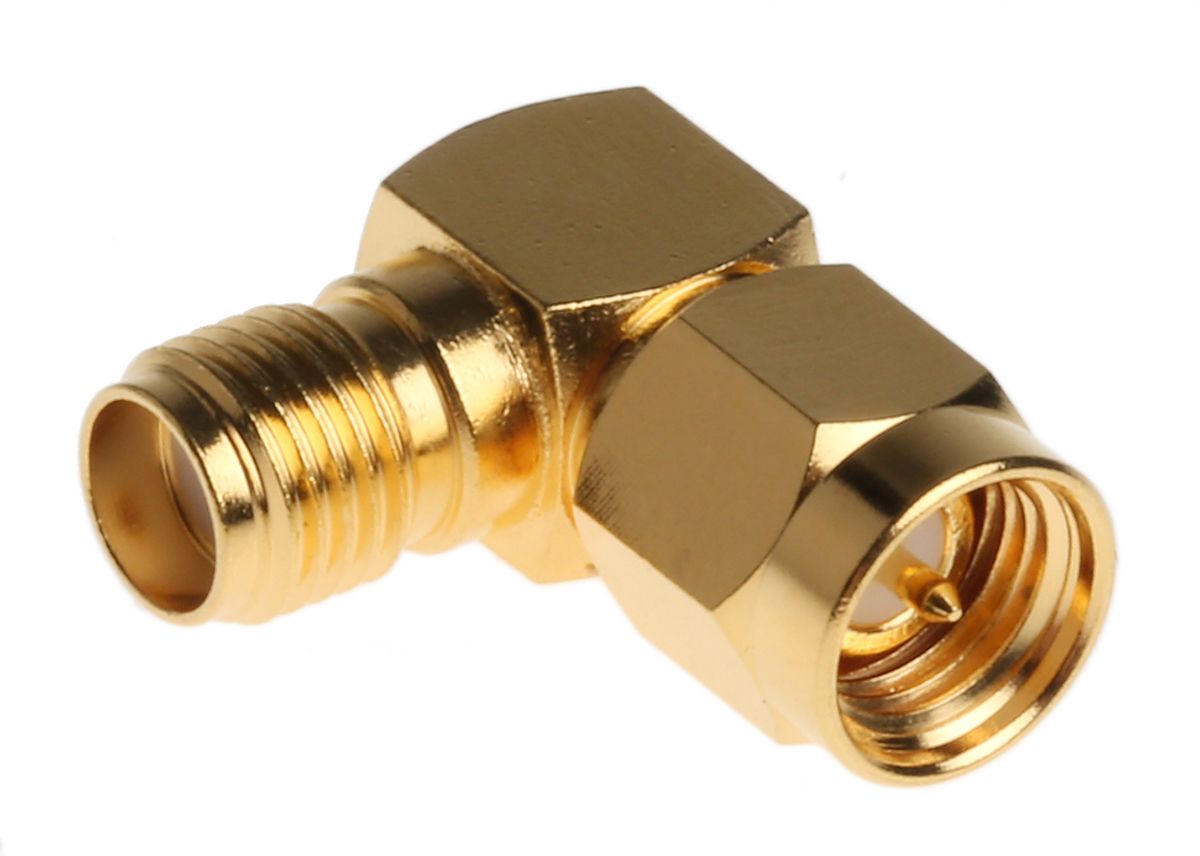

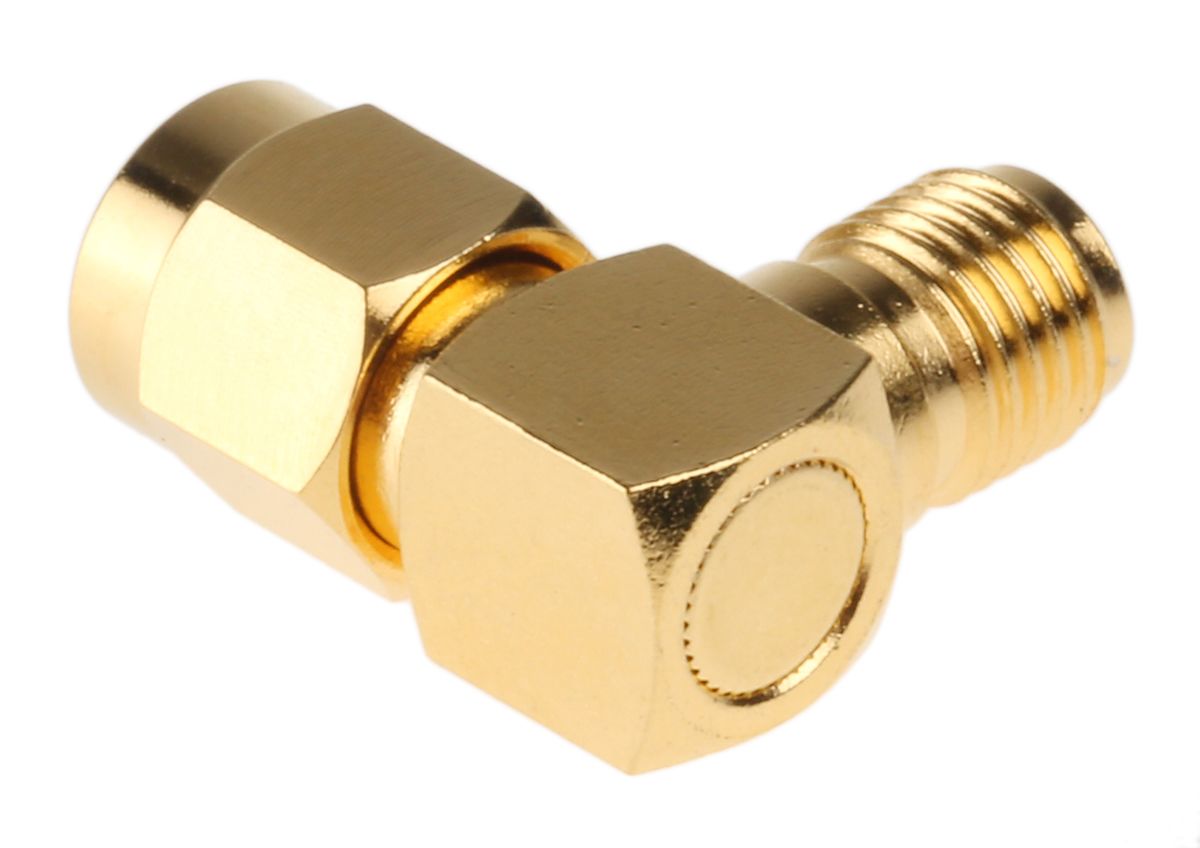

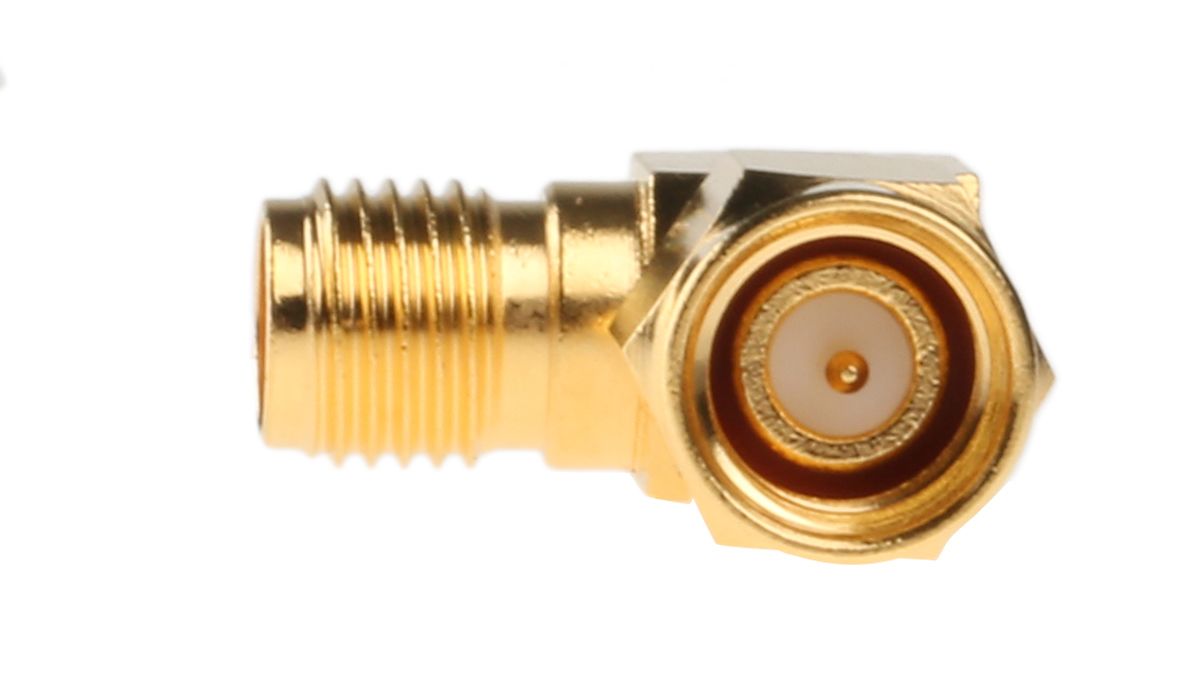

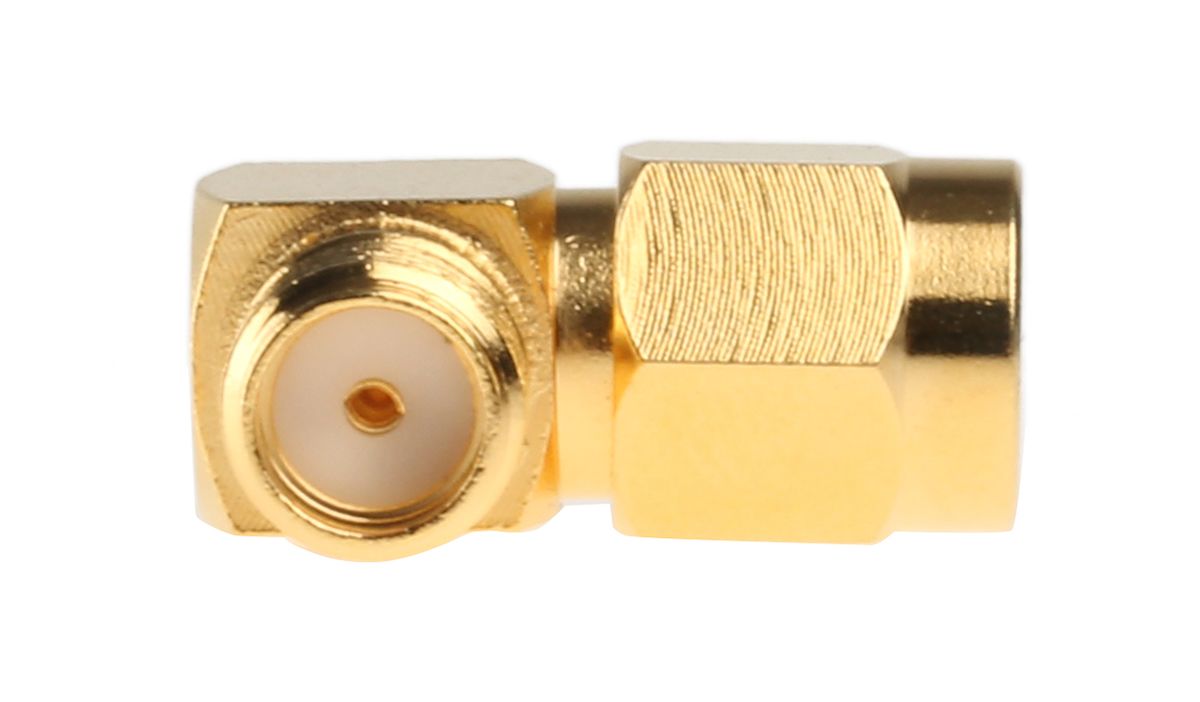

Right Angle 50Ω RF Adapter SMA Plug to SMA Socket

RS Stock No.:
7009600
Mfr. Prt No.:
SMA5072A2-3GT50G-50
Brand:
Amphenol RF

Technical Reference

Legislation and Compliance

RoHS Certificate of Compliance

RS Components
RoHS Certificate of Compliance

EU Directives 2011/65/EU and 2015/863 restrict the use of the 10 substances below in the manufacture of specified types of electrical equipment.

Whilst this restriction does not legally apply to components, it is recognised that component “compliance” is relevant to many customers.

RS definition of RoHS Compliance:

  • The product does not contain any of the restricted substances in concentrations and applications banned by the Directive,
  • and for components, the product is capable of being worked on at the higher temperatures required by lead–free soldering

The restricted substances and maximum allowed concentrations in the homogenous material are, by weight:

SubstanceConcentration
Lead0.1%
Mercury0.1%
PBB (Polybrominated Biphenyls)0.1%
PBDE ( Polybrominated Diphenyl Ethers)0.1%
Hexavalent Chromium0.1%
Cadmium0.01%
DEHP (Bis (2-Ethylhexl) phthalate)0.1%
BBP (Benzyl butyl phthalate)0.1%
DBP (Dibutyl phthalate)0.1%
DIBP (Diisobutyl phthalate)0.1%

The supplier of the item listed below has informed RS Components that the product is "RoHS Compliant".

RS Components has taken all reasonable steps to confirm this statement. Information relates only to products sold on or after the date of this certificate.

Compliant Product Details
RS stock number 7009600
Product description Right Angle 50Ω RF Adapter SMA Plug to SMA Socket
Manufacturer / Brand Amphenol RF
Manufacturer part number SMA5072A2-3GT50G-50

RS Components Ltd, Birchington Road, Corby, Northants, NN17 9RS, UK

Statement of Conformity

RS Components
Statement of Conformity

This statement confirms that the product detailed below complies with the specifications currently published in the RS media and has been subject to the strict quality conditions imposed by RS Components’ internal management systems. Furthermore and where applicable, it confirms that all relevant semiconductor devices have been handled and packed under conditions that meet the administrative and technical requirements of ANSI/ESD S20.20 and EN61340-5-1 electrostatics control standards.

Compliant Product Details
RS stock number 7009600
Product description Right Angle 50Ω RF Adapter SMA Plug to SMA Socket
Manufacturer / Brand Amphenol RF
Manufacturer part number SMA5072A2-3GT50G-50

The foregoing information relates to product sold on, or after, the date shown below.

RS COMPONENTS

Date May 25, 2022

RS Components Pte Ltd Robinson Road, P.O. Box 1582, Singapore 903132


Product Details

Amphenol SMA Connectors

SMA series connectors

Amphenol 50 Ohm SMA Jack to SMA Plug RF Coaxial Adapters

50 Ohm SMA jack to SMA plug RF coaxial adapters with a gold plated centre contact. These 50 Ohm SMA jack to SMA plug RF coaxial adapters are available with various body materials and platings, please see additional data table for details.


Specifications

Attribute Value
Brand Amphenol RF
Adapter Type SMA Plug to SMA Socket
Adapter Type A SMA
Adapter Type B SMA
Gender A Male
Gender B Female
Impedance 50 Ω
Body Orientation Right Angle
Contact Plating Gold over Nickel
Length 17.1 mm
Body Plating Gold
Cable Type Coaxial
Contact Material Beryllium Copper
Checking stock...
VND
593,137.82
Out of stock
Price Each
Unit(s)Per Unit(VND)
1593,137.82
*price per unit indicative
