Laserliner SuperLine 2D Laser Level, 650nm Laser wavelength
- RS Stock No.:
- 1248652
- Mfr. Prt No.:
- SuperLine 2D
- Brand:
- Laserliner
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
EU Directives 2011/65/EU and 2015/863 restrict the use of the 10 substances below in the manufacture of specified types of electrical equipment.
Whilst this restriction does not legally apply to components, it is recognised that component “compliance” is relevant to many customers.
RS definition of RoHS Compliance:
- The product does not contain any of the restricted substances in concentrations and applications banned by the Directive,
- and for components, the product is capable of being worked on at the higher temperatures required by lead–free soldering
The restricted substances and maximum allowed concentrations in the homogenous material are, by weight:
| Substance | Concentration |
| Lead | 0.1% |
| Mercury | 0.1% |
| PBB (Polybrominated Biphenyls) | 0.1% |
| PBDE ( Polybrominated Diphenyl Ethers) | 0.1% |
| Hexavalent Chromium | 0.1% |
| Cadmium | 0.01% |
| DEHP (Bis (2-Ethylhexl) phthalate) | 0.1% |
| BBP (Benzyl butyl phthalate) | 0.1% |
| DBP (Dibutyl phthalate) | 0.1% |
| DIBP (Diisobutyl phthalate) | 0.1% |
The supplier of the item listed below has informed RS Components that the product is "RoHS Compliant".
RS Components has taken all reasonable steps to confirm this statement. Information relates only to products sold on or after the date of this certificate.
| RS stock number | 1248652 |
| Product description | Laserliner SuperLine 2D Laser Level, 650nm Laser wavelength |
| Manufacturer / Brand | Laserliner |
| Manufacturer part number | SuperLine 2D |
RS Components Ltd, Birchington Road, Corby, Northants, NN17 9RS, UK
Statement of Conformity
This statement confirms that the product detailed below complies with the specifications currently published in the RS media and has been subject to the strict quality conditions imposed by RS Components’ internal management systems. Furthermore and where applicable, it confirms that all relevant semiconductor devices have been handled and packed under conditions that meet the administrative and technical requirements of ANSI/ESD S20.20 and EN61340-5-1 electrostatics control standards.
| RS stock number | 1248652 |
| Product description | Laserliner SuperLine 2D Laser Level, 650nm Laser wavelength |
| Manufacturer / Brand | Laserliner |
| Manufacturer part number | SuperLine 2D |
The foregoing information relates to product sold on, or after, the date shown below.
RS COMPONENTS
| Date | Apr 24, 2024 |
RS Components Pte Ltd Robinson Road, P.O. Box 1582, Singapore 903132
Country of Origin: CN
Product Details

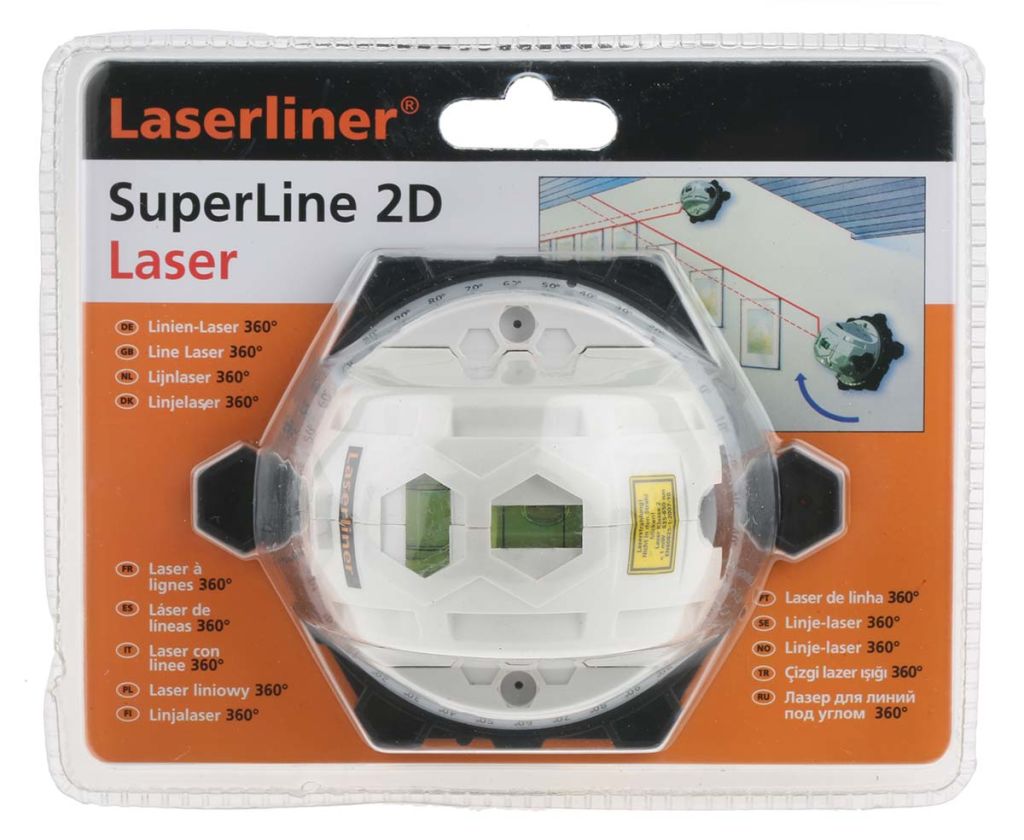

Laserliner Super-Line 2D Laser
Laserliner SuperLine 2D single line alignment laser with 2.5m beam length and 360 degree magnetic base. The versitile Superline 2D laser level can attach to carpets, walls, tiles, glass, wood and more. A rotatable angle scale means that the device and the graduated collar can be set separately to any angle.
Features and Benefits
Precise horizontal and vertical levelling
Powerful adhesion magnets facilitate attachment to magnetic surfaces
Bright red laser
Requires 2 x AAA batteries
Specifications
| Attribute | Value |
| Brand | Laserliner |
| Levelling Accuracy | ±0.1 mm/m |
| Working Environment | Indoor |
| Alignment Level | Yes |
| Laser Colour | Red |
| Laser Wavelength | 650 nm |
| Power Source | Battery |
| Dimensions | 120 x 70 x 100 mm |
| Weight | 200 g |
| Vial | Yes |
| Height | 100 mm |
| Width | 70 mm |
| Model Number p | SuperLine 2D |
| Length | 120 mm |
