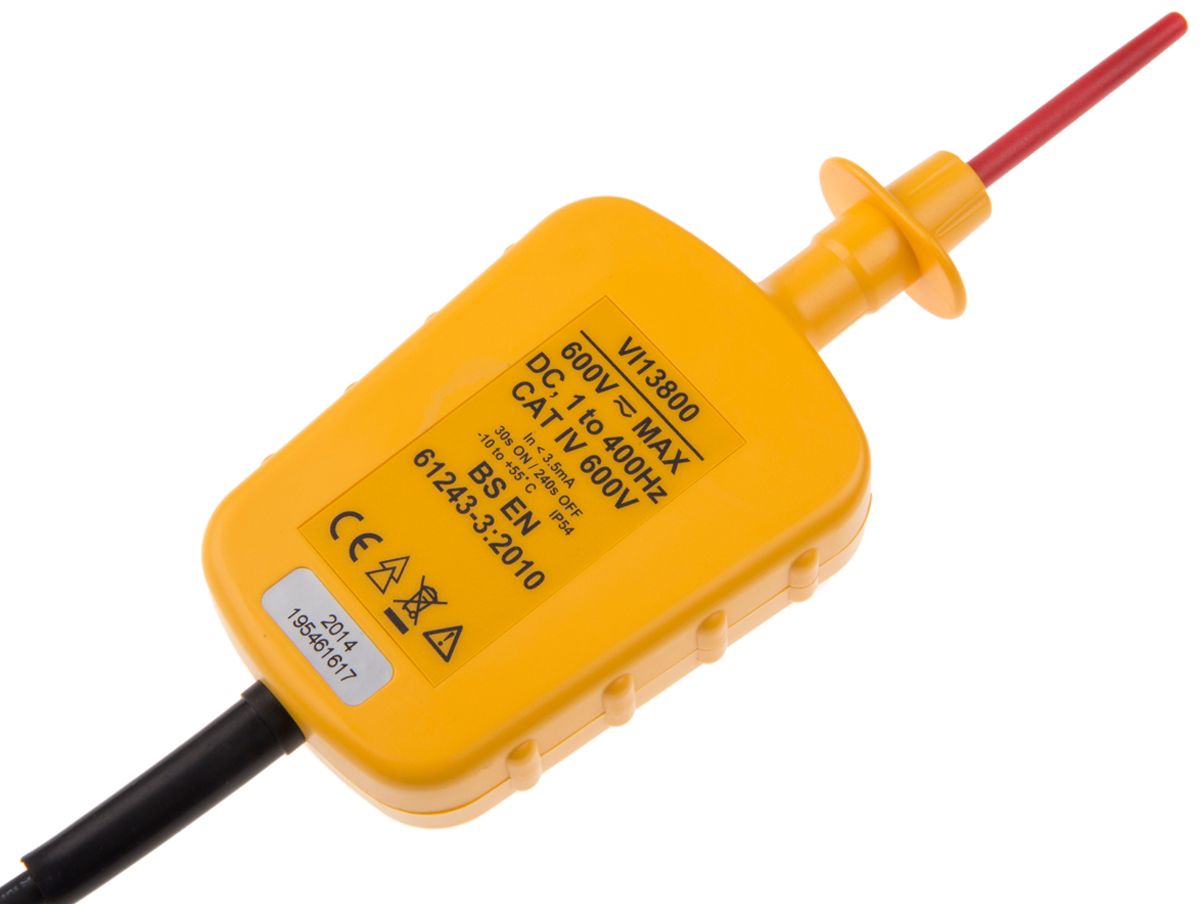

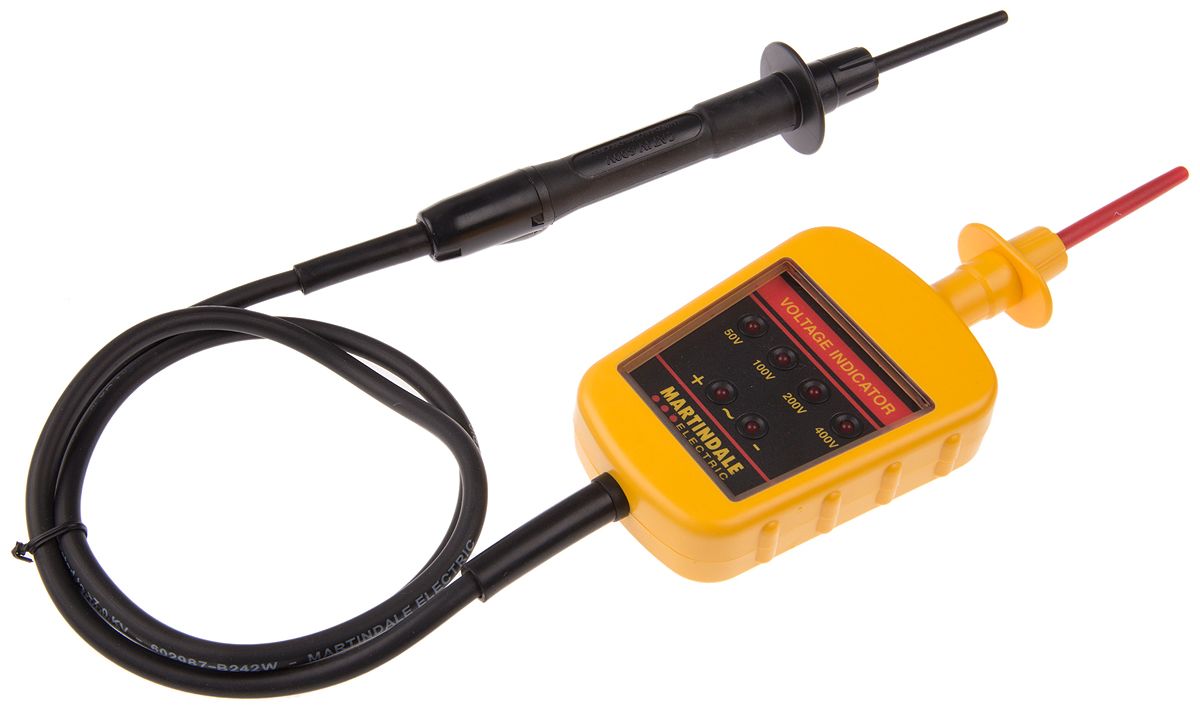

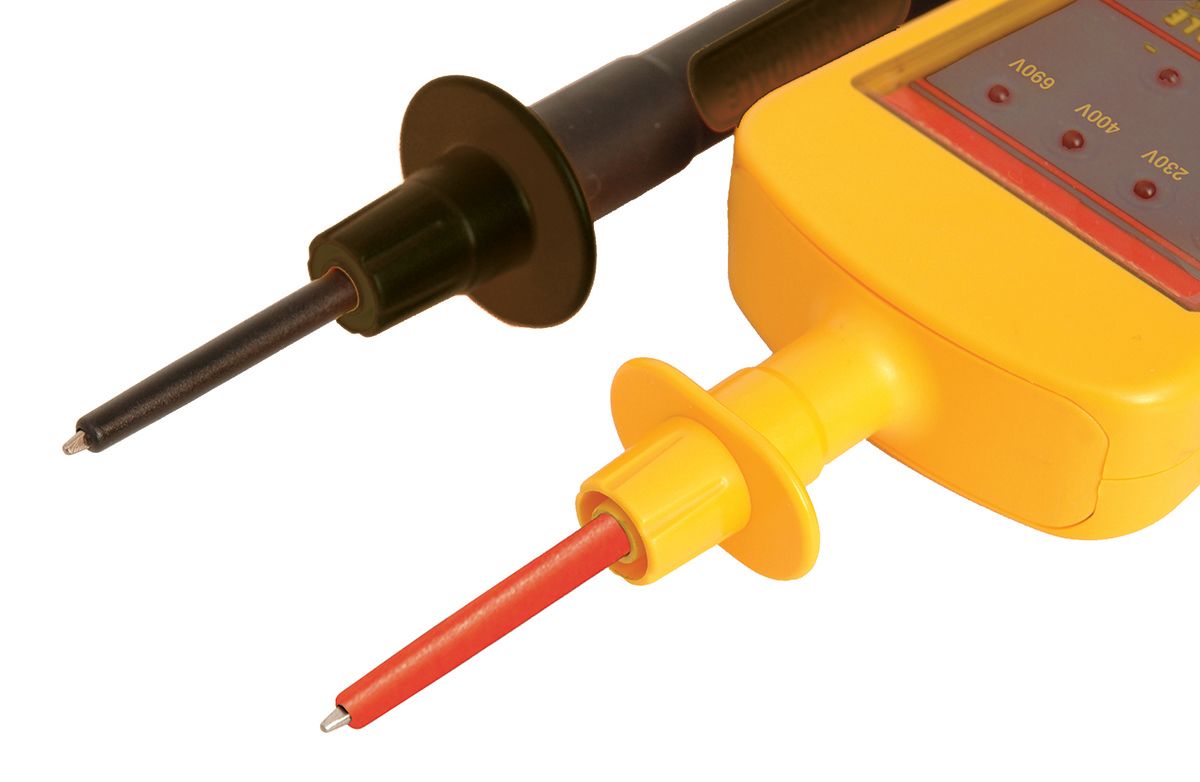

Martindale VI13800, LED Voltage tester, 600V ac/dc, From Unit Under Test Powered, CAT III 1000V
- RS Stock No.:
- 7824428
- Mfr. Prt No.:
- VI13800
- Brand:
- Martindale
Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
Statement of Conformity
RS Components
Statement of Conformity
This statement confirms that the product detailed below complies with the specifications currently published in the RS media and has been subject to the strict quality conditions imposed by RS Components’ internal management systems. Furthermore and where applicable, it confirms that all relevant semiconductor devices have been handled and packed under conditions that meet the administrative and technical requirements of ANSI/ESD S20.20 and EN61340-5-1 electrostatics control standards.
Compliant Product Details
| RS stock number | 7824428 |
| Product description | Martindale VI13800, LED Voltage tester, 600V ac/dc, From Unit Under Test Powered, CAT III 1000V |
| Manufacturer / Brand | Martindale |
| Manufacturer part number | VI13800 |
The foregoing information relates to product sold on, or after, the date shown below.
RS COMPONENTS
| Date | Apr 29, 2024 |
RS Components Pte Ltd Robinson Road, P.O. Box 1582, Singapore 903132
Country of Origin: PH
Product Details
Specifications
| Attribute | Value |
| Brand | Martindale |
| Maximum Voltage | 600 V ac/dc |
| Safety Category | CAT III 1000V, CAT IV 600 V |
| Display Type | LED |
| IP Rating | IP54 |
| Power Source | From Unit Under Test |
| Dimensions | 205 x 67 x 27 mm |
| Weight | 130 g |
| Height | 27 mm |
| Length | 205 mm |
| Maximum Operating Temperature | +55 °C |
| Minimum Operating Temperature | -10 °C |
| Model Number p | VI13800 |
| Width | 67 mm |
| Safety Category Level | CAT III, CAT IV |
| Safety Category Voltage | 1000 V, 600 V |
