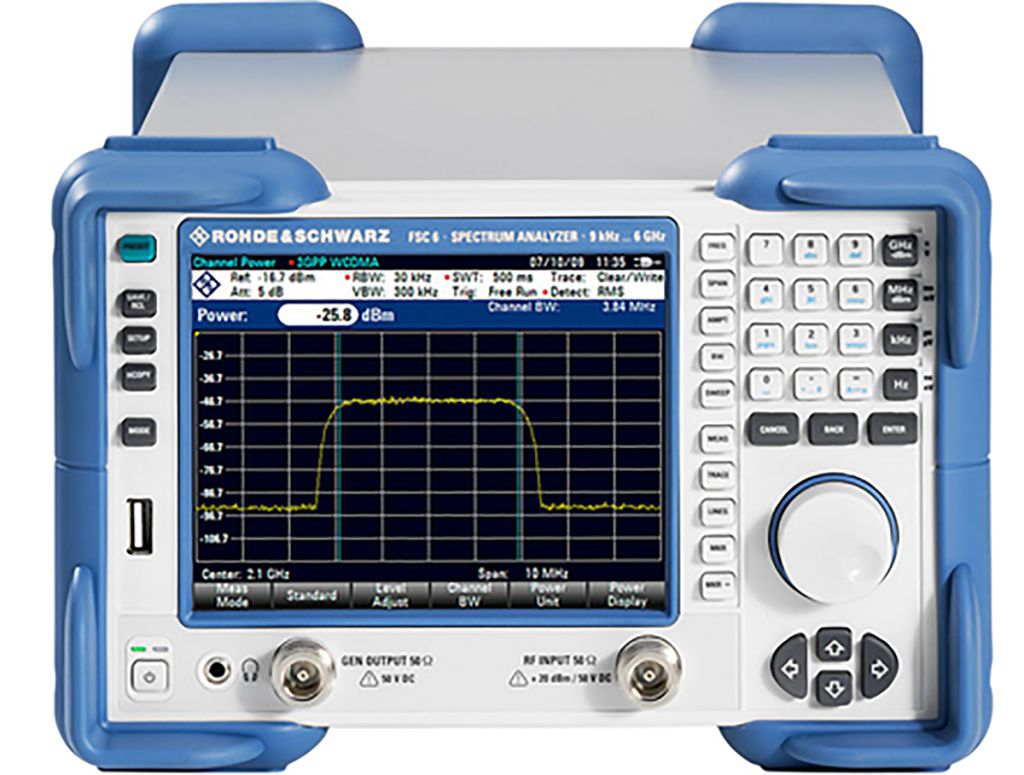

Rohde & Schwarz FSC-P4 Desktop Spectrum Analyser, 9 kHz → 6 GHz

RS Stock No.:
1448236
Mfr. Prt No.:
FSC-P4
Brand:
Rohde & Schwarz

Technical Reference

Legislation and Compliance

RoHS Certificate of Compliance

RS Components
RoHS Certificate of Compliance

EU Directives 2011/65/EU and 2015/863 restrict the use of the 10 substances below in the manufacture of specified types of electrical equipment.

Whilst this restriction does not legally apply to components, it is recognised that component “compliance” is relevant to many customers.

RS definition of RoHS Compliance:

  • The product does not contain any of the restricted substances in concentrations and applications banned by the Directive,
  • and for components, the product is capable of being worked on at the higher temperatures required by lead–free soldering

The restricted substances and maximum allowed concentrations in the homogenous material are, by weight:

SubstanceConcentration
Lead0.1%
Mercury0.1%
PBB (Polybrominated Biphenyls)0.1%
PBDE ( Polybrominated Diphenyl Ethers)0.1%
Hexavalent Chromium0.1%
Cadmium0.01%
DEHP (Bis (2-Ethylhexl) phthalate)0.1%
BBP (Benzyl butyl phthalate)0.1%
DBP (Dibutyl phthalate)0.1%
DIBP (Diisobutyl phthalate)0.1%

The supplier of the item listed below has informed RS Components that the product is "RoHS Compliant".

RS Components has taken all reasonable steps to confirm this statement. Information relates only to products sold on or after the date of this certificate.

Compliant Product Details
RS stock number 1448236
Product description Rohde & Schwarz FSC-P4 Desktop Spectrum Analyser, 9 kHz → 6 GHz
Manufacturer / Brand Rohde & Schwarz
Manufacturer part number FSC-P4

RS Components Ltd, Birchington Road, Corby, Northants, NN17 9RS, UK

Statement of Conformity

RS Components
Statement of Conformity

This statement confirms that the product detailed below complies with the specifications currently published in the RS media and has been subject to the strict quality conditions imposed by RS Components’ internal management systems. Furthermore and where applicable, it confirms that all relevant semiconductor devices have been handled and packed under conditions that meet the administrative and technical requirements of ANSI/ESD S20.20 and EN61340-5-1 electrostatics control standards.

Compliant Product Details
RS stock number 1448236
Product description Rohde & Schwarz FSC-P4 Desktop Spectrum Analyser, 9 kHz → 6 GHz
Manufacturer / Brand Rohde & Schwarz
Manufacturer part number FSC-P4

The foregoing information relates to product sold on, or after, the date shown below.

RS COMPONENTS

Date Mar 29, 2024

RS Components Pte Ltd Robinson Road, P.O. Box 1582, Singapore 903132

Country of Origin: MY


Product Details


Specifications

Attribute Value
Brand Rohde & Schwarz
Bandwidth 9 kHz → 6 GHz
Interface Type LAN, USB
Minimum Operating Temperature 0 °C
Height 158.1 mm
Series FSC
Width 350 mm
Length 233 mm
Model Number p FSC-P4
Weight 4.5 kg
Setting Modes Span
Markers Frequency
Desktop/Handheld Desktop
RF Input N Connector
Maximum Frequency 6 GHz
Wave Traces Average, Maximum Hold, Minimum Hold, View
Minimum Frequency 9 kHz
Dimensions 233 x 350 x 158.1 mm
Number of Channels 1
Display Type LCD
Maximum Operating Temperature +50 °C
Checking stock...
VND
350,049,113.00
Out of stock
Price Each
Unit(s)Per Unit(VND)
1350,049,113.00
*price per unit indicative
