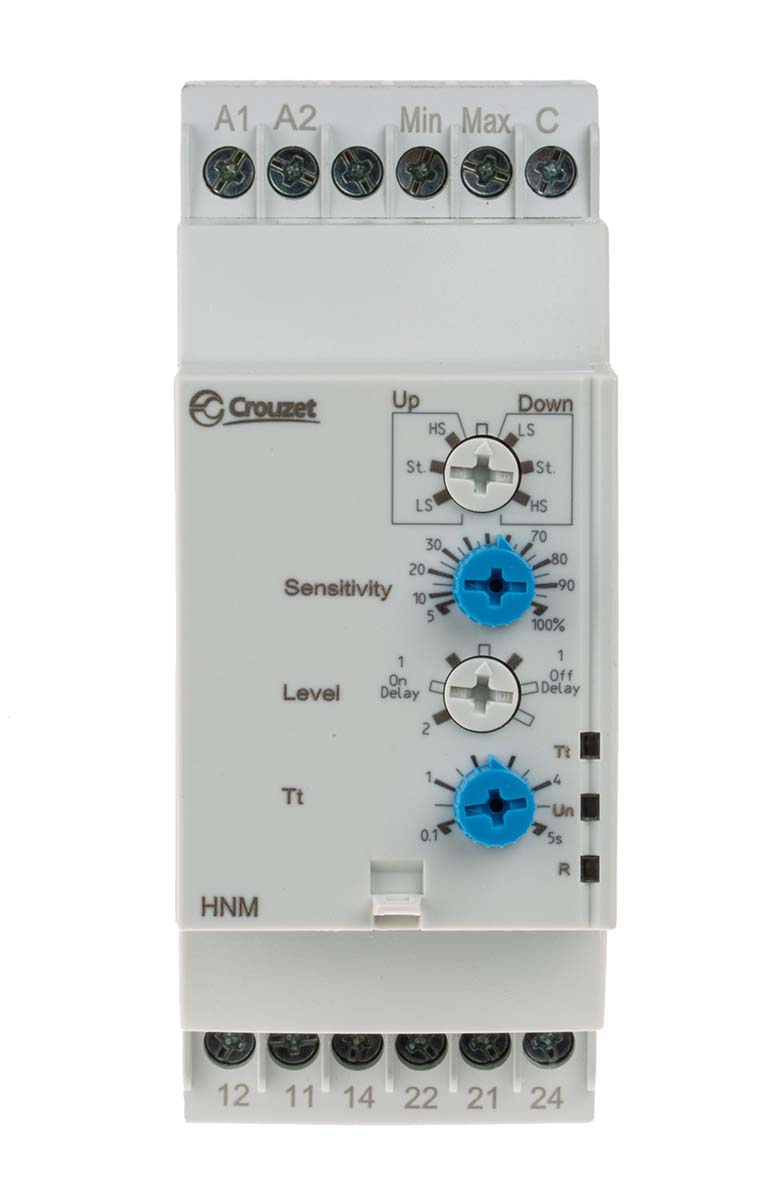

Level Control Relay - HNM
Note
This is the first conductivity unit to have a DC power option.
Liquid Level Relays are used to monitor the levels of conductive liquids, and are available in Up/Down, Minimum, Maximum, and Fill/Empty variations. Liquid Level Relays are straightforward to install and safe to use.
Application Examples
For controlling the filling or emptying level of conductive liquids
0.1 to 5 sec adjustable time delay (anti-wave effect)
Universal model for 24 to 240V AC/DC
Power supply voltage 20.4 to 264Vac/dc
Regulation of maximum and minimum levels using three probes (max 100Mtrs)
Monitoring filling (UP) or emptying (DOWN), selected by a switch on the front panel
Sensitivity adjustable in 3 ranges:- 250Ω → 5KΩ, 5Kohm → 100KΩ, 100KΩ → 1MΩ.
Operating temperature -20 → +50°C
DIN rail mounting
Suitable electrode see stock no. 354-290
Dimensions (mm): H 90, W 35.6, D69
Liquid Level Relays (Conductive Level Sensors) are used in a wide variety of applications including waste water management and the monitoring and management of corrosive liquid media, and designed specifically to provide for the:
Monitoring and control of liquid levels
Protection of pumps against dry running
Ability to detect liquid leaks in a system
Control of media mixing ratios
Control of liquid levels
Specifications
| Attribute | Value |
| Brand | Crouzet |
| Minimum Current Sensed | 10 mA |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -20 °C |
| Width | 90 mm |
| Voltage Sensing Range | 24 → 240 V ac |
| Maximum Operating Temperature | +50 °C |
| Time Delay | 0.1 → 5 s |
| Height | 69 mm |
| Monitoring Application | Level Control |
| Maximum Current Sensed | 5 A |
| Frequency Sensing Range | 50 → 60 Hz |
| Dimensions | 69 x 35 x 92.6 mm |
| Operating Temperature Range | -20 → +50 °C |
| Length | 90 mm |
