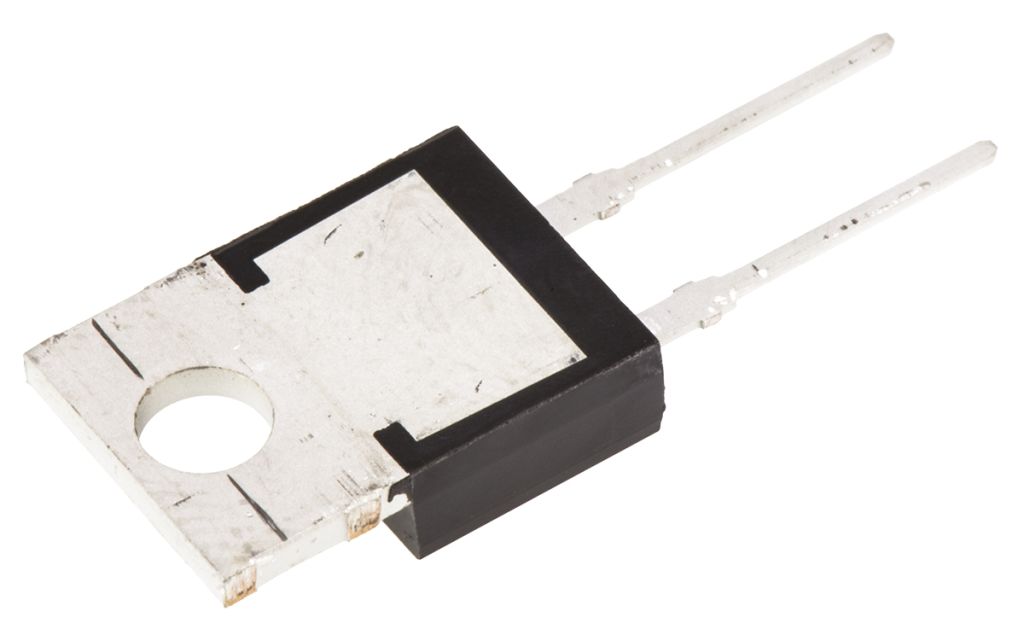

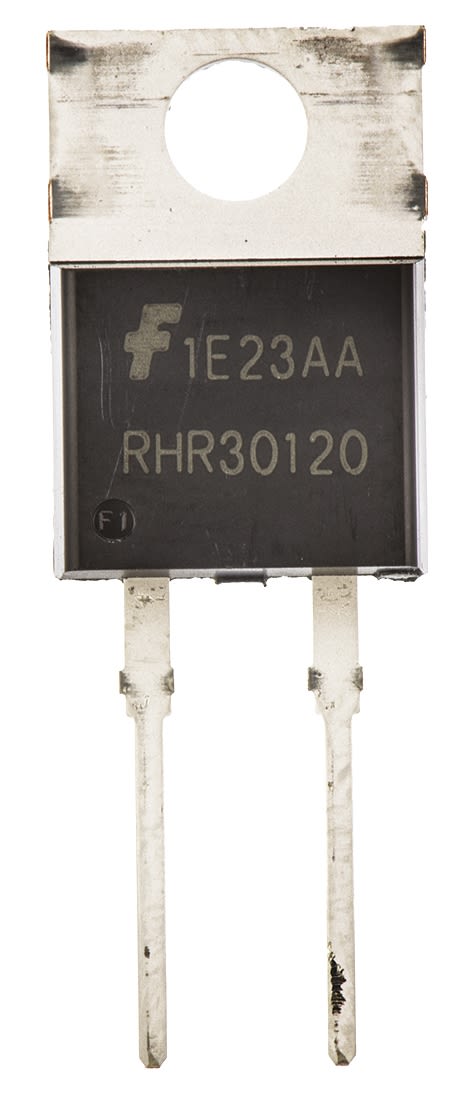

Fairchild 1200V 30A, Silicon Junction Diode, 2-Pin TO-220AC RHRP30120

RS Stock No.:
1837156
Mfr. Prt No.:
RHRP30120
Brand:
Fairchild Semiconductor

Technical Reference

Legislation and Compliance

RoHS Certificate of Compliance

RS Components
RoHS Certificate of Compliance

EU Directives 2011/65/EU and 2015/863 restrict the use of the 10 substances below in the manufacture of specified types of electrical equipment.

Whilst this restriction does not legally apply to components, it is recognised that component “compliance” is relevant to many customers.

RS definition of RoHS Compliance:

  • The product does not contain any of the restricted substances in concentrations and applications banned by the Directive,
  • and for components, the product is capable of being worked on at the higher temperatures required by lead–free soldering

The restricted substances and maximum allowed concentrations in the homogenous material are, by weight:

SubstanceConcentration
Lead0.1%
Mercury0.1%
PBB (Polybrominated Biphenyls)0.1%
PBDE ( Polybrominated Diphenyl Ethers)0.1%
Hexavalent Chromium0.1%
Cadmium0.01%
DEHP (Bis (2-Ethylhexl) phthalate)0.1%
BBP (Benzyl butyl phthalate)0.1%
DBP (Dibutyl phthalate)0.1%
DIBP (Diisobutyl phthalate)0.1%

The supplier of the item listed below has informed RS Components that the product is "RoHS Compliant".

RS Components has taken all reasonable steps to confirm this statement. Information relates only to products sold on or after the date of this certificate.

Compliant Product Details
RS stock number 1837156
Product description Fairchild 1200V 30A, Silicon Junction Diode, 2-Pin TO-220AC RHRP30120
Manufacturer / Brand Fairchild Semiconductor
Manufacturer part number RHRP30120

RS Components Ltd, Birchington Road, Corby, Northants, NN17 9RS, UK

Statement of Conformity

RS Components
Statement of Conformity

This statement confirms that the product detailed below complies with the specifications currently published in the RS media and has been subject to the strict quality conditions imposed by RS Components’ internal management systems. Furthermore and where applicable, it confirms that all relevant semiconductor devices have been handled and packed under conditions that meet the administrative and technical requirements of ANSI/ESD S20.20 and EN61340-5-1 electrostatics control standards.

Compliant Product Details
RS stock number 1837156
Product description Fairchild 1200V 30A, Silicon Junction Diode, 2-Pin TO-220AC RHRP30120
Manufacturer / Brand Fairchild Semiconductor
Manufacturer part number RHRP30120

The foregoing information relates to product sold on, or after, the date shown below.

RS COMPONENTS

Date Mar 29, 2024

RS Components Pte Ltd Robinson Road, P.O. Box 1582, Singapore 903132


Product Details

Diodes and Rectifiers, ON Semiconductor

Whether you are working on a new design, or purchasing, ON Semiconductor provides you with industry-standard diodes and rectifiers, small signal diodes, Schottky and Zener diodes. The components offer the best available combination of quality, features, and packaging options.

Rectifier Diodes, 10A to 80A, Fairchild Semiconductor


Specifications

Attribute Value
Brand Fairchild Semiconductor
Mounting Type Through Hole
Package Type TO-220AC
Maximum Continuous Forward Current 30 A
Peak Reverse Repetitive Voltage 1200 V
Diode Configuration Single
Rectifier Type Switching
Diode Type Silicon Junction
Pin Count 2
Maximum Forward Voltage Drop 3.2 V
Number of Elements per Chip 1
Diode Technology Silicon Junction
Peak Reverse Recovery Time 85 ns
Peak Non-Repetitive Forward Surge Current 300 A
