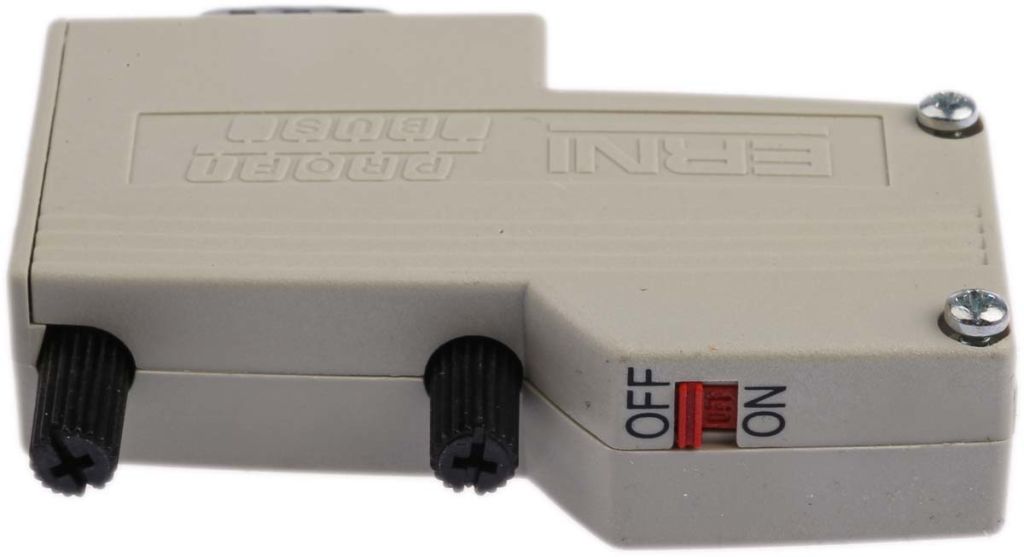

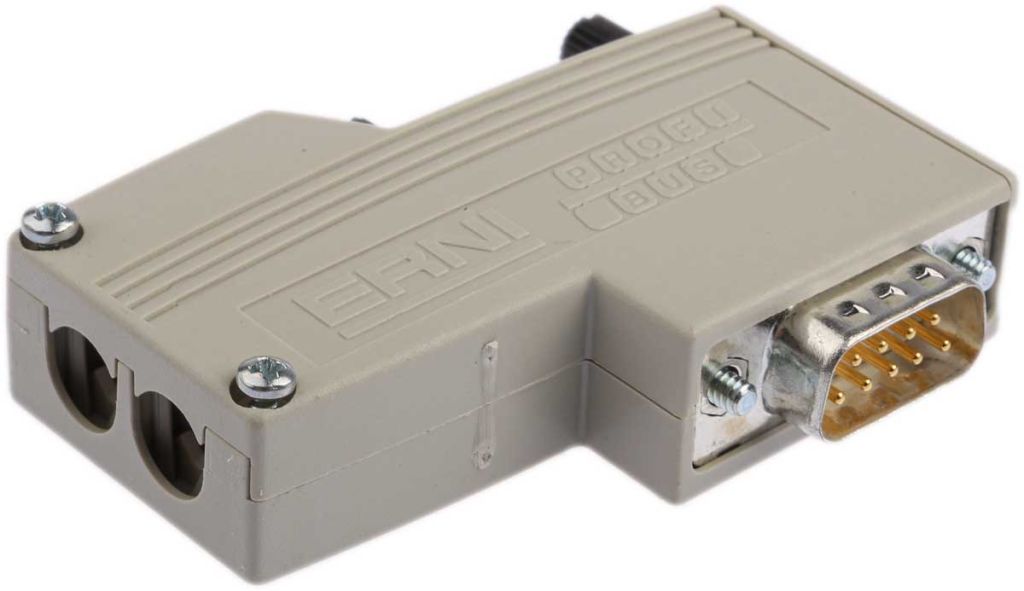

ERNI ERbic 9 Way Right Angle Cable Mount D-sub Connector Plug
- RS Stock No.:
- 4543264
- Mfr. Prt No.:
- 144176
- Brand:
- ERNI
Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
Statement of Conformity
RS Components
Statement of Conformity
This statement confirms that the product detailed below complies with the specifications currently published in the RS media and has been subject to the strict quality conditions imposed by RS Components’ internal management systems. Furthermore and where applicable, it confirms that all relevant semiconductor devices have been handled and packed under conditions that meet the administrative and technical requirements of ANSI/ESD S20.20 and EN61340-5-1 electrostatics control standards.
Compliant Product Details
| RS stock number | 4543264 |
| Product description | ERNI ERbic 9 Way Right Angle Cable Mount D-sub Connector Plug |
| Manufacturer / Brand | ERNI |
| Manufacturer part number | 144176 |
The foregoing information relates to product sold on, or after, the date shown below.
RS COMPONENTS
| Date | May 10, 2024 |
RS Components Pte Ltd Robinson Road, P.O. Box 1582, Singapore 903132
Country of Origin: DE
Product Details
Erbic® bus systems D Type Connectors
'D' Sub-Miniature Connection System
Profibus switch
APPROVALS : UL E 87403
Specifications
| Attribute | Value |
| Brand | ERNI |
| Number of Contacts | 9 |
| Gender | Male |
| Body Orientation | Right Angle |
| Mounting Type | Cable Mount |
| Termination Method | IDC |
| Housing Material | Galvanized Zinc Aluminium, Thermoplastic |
| Length | 64.6 mm |
| Width | 16.0 mm |
| Depth | 47.4 mm |
| Dimensions | 64.6 x 16 x 47.4 mm |
| Series | ERbic |
| Minimum Operating Temperature | -20.0 °C |
| Maximum Operating Temperature | +70 °C |
