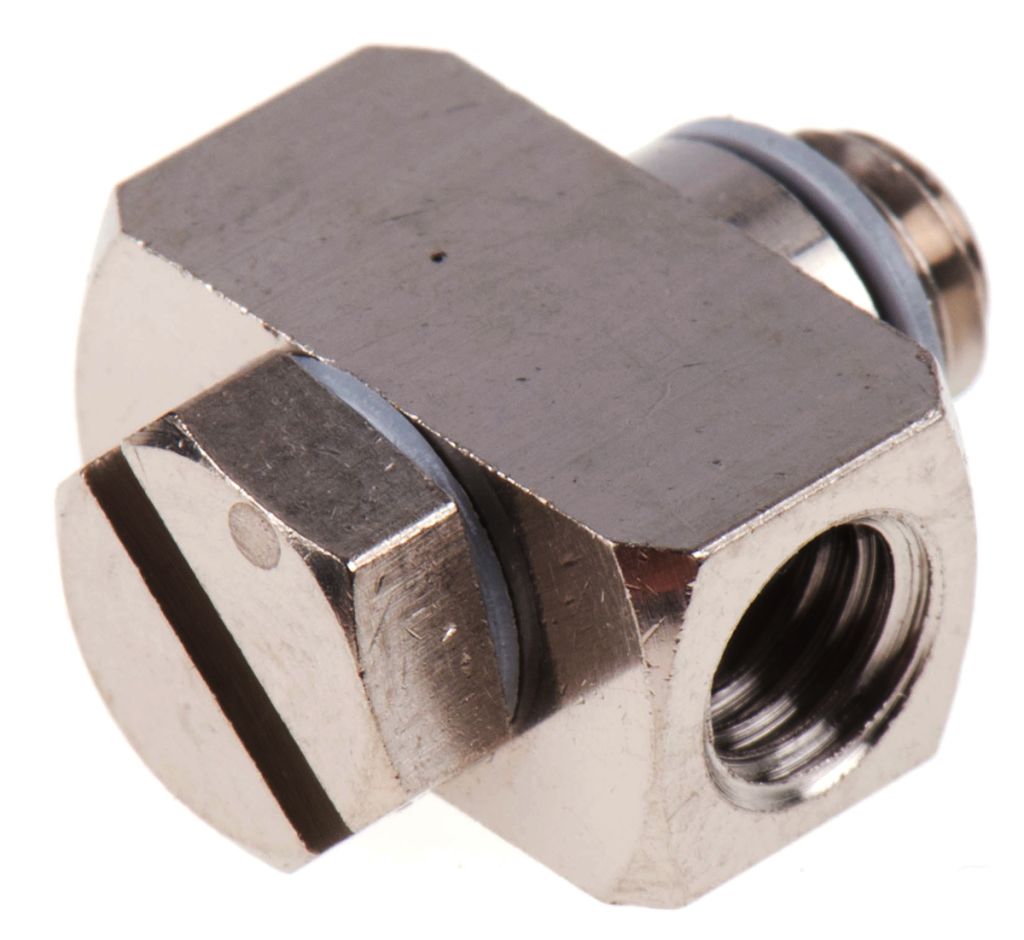

SMC M Series Tee Threaded Adaptor, M5 Female to M5 Female
- RS Stock No.:
- 2223766
- Mfr. Prt No.:
- M-5UT
- Brand:
- SMC
Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
Statement of Conformity
This statement confirms that the product detailed below complies with the specifications currently published in the RS media and has been subject to the strict quality conditions imposed by RS Components’ internal management systems. Furthermore and where applicable, it confirms that all relevant semiconductor devices have been handled and packed under conditions that meet the administrative and technical requirements of ANSI/ESD S20.20 and EN61340-5-1 electrostatics control standards.
| RS stock number | 2223766 |
| Product description | SMC M Series Tee Threaded Adaptor, M5 Female to M5 Female |
| Manufacturer / Brand | SMC |
| Manufacturer part number | M-5UT |
The foregoing information relates to product sold on, or after, the date shown below.
RS COMPONENTS
| Date | Apr 20, 2024 |
RS Components Pte Ltd Robinson Road, P.O. Box 1582, Singapore 903132
Country of Origin: FR
Product Details
Threaded Adaptors & Accessories
M5 Equal Tee/Universal Tee
Tee's for connecting pipes of different diameters and changing direction of piping.
M5 Nickel plated miniature fittings offering a compact and space saving design
The tube has a large retaining force with hose nipples assuring easy removal
Suitable for nylon, soft nylon and polyurethane tubing
Specifications
| Attribute | Value |
| Brand | SMC |
| Manufacturer Series | M |
| Pneumatic Fitting Type | Tee Threaded Adaptor |
| Branch Connector | M5 x 0.8 Male |
| Body Material | Brass |
| Material | Brass |
| Finish | Nickel Plated |
| Maximum Operating Pressure | 1.5 MPa |
| Branch Connector - Gender | Male |
| Connector B - Gender | Female |
| Connector A - Thread Standard | Metric |
| Connector A - Gender | Female |
| Connector A - Thread Size | M5 x 0.8 |
| Branch Connector - Thread Standard | Metric |
| Connector B - Thread Size | M5 x 0.8 |
| Connector B | M5 Female |
| Connector A | M5 Female |
| Connector B - Thread Standard | Metric |
| Threaded Connection | M5 Male |
