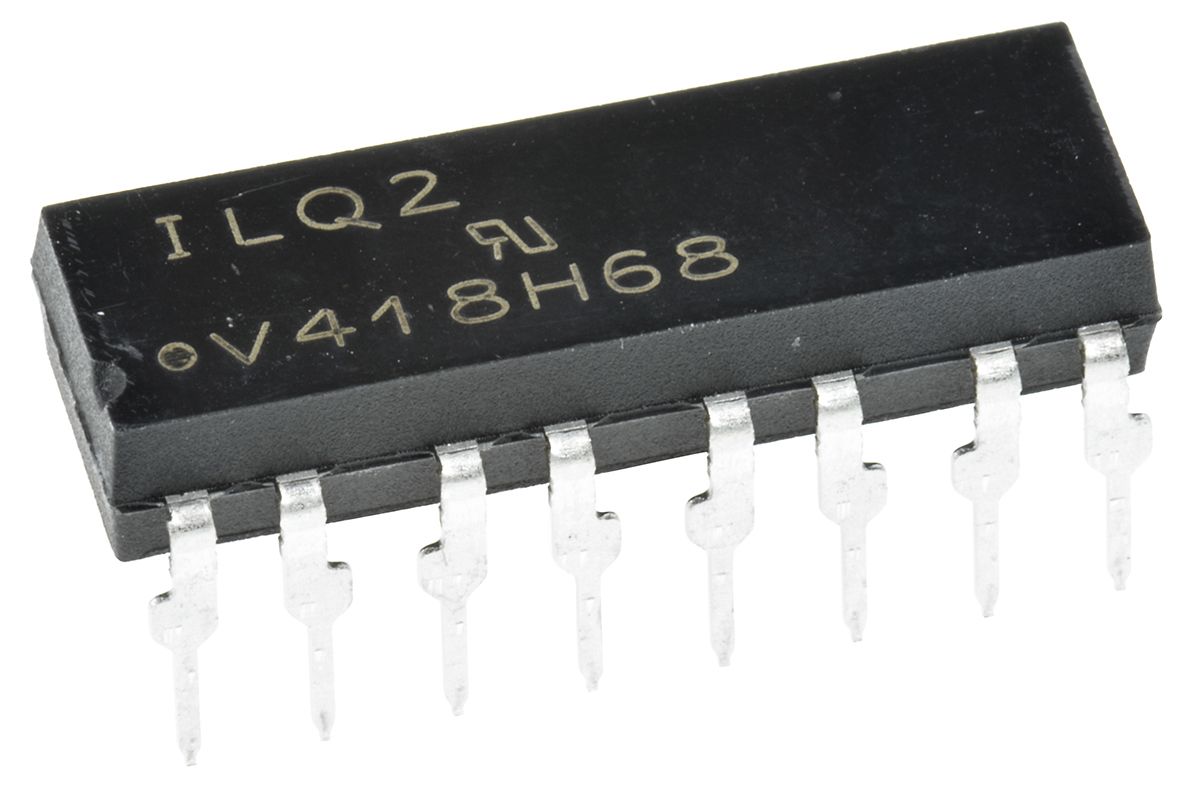

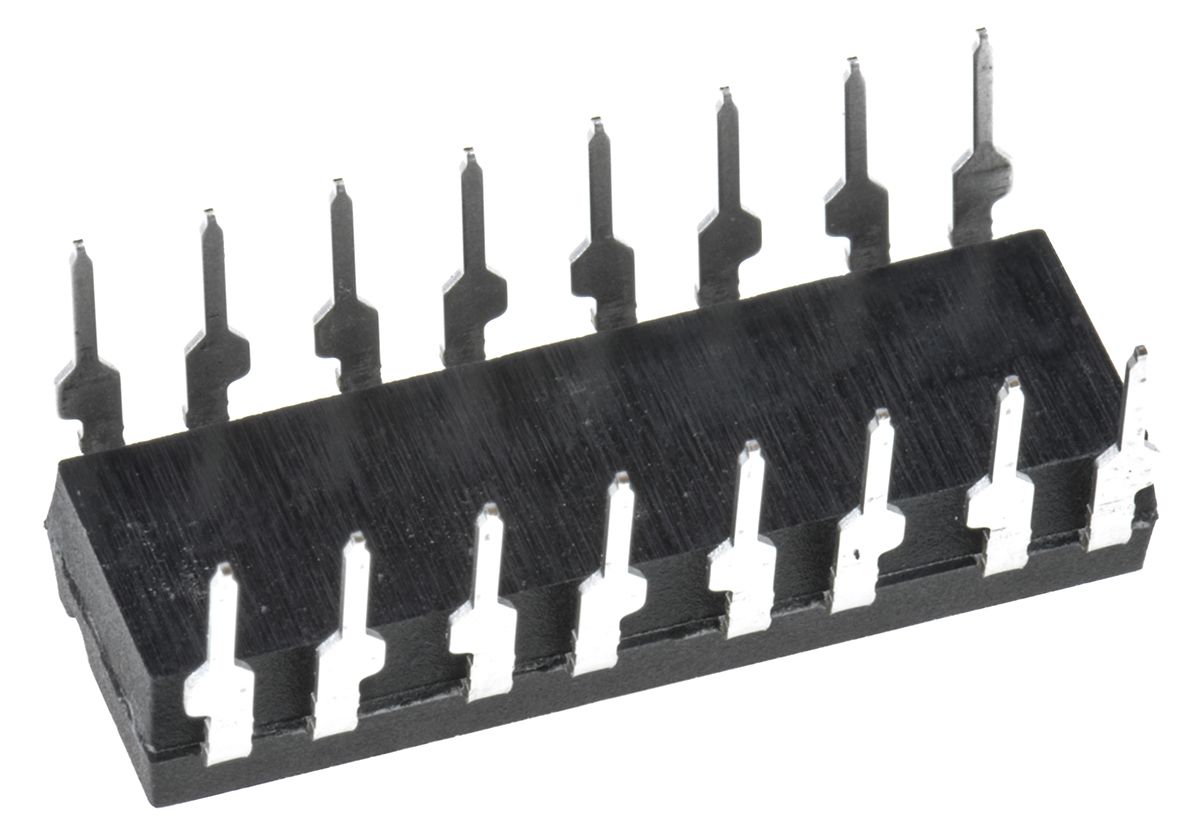

Vishay, ILQ2 DC Input Transistor Output Quad Optocoupler, Through Hole, 16-Pin PDIP

RS Stock No.:
7085386
Mfr. Prt No.:
ILQ2
Brand:
Vishay

Technical Reference


Legislation and Compliance

RoHS Certificate of Compliance

RS Components
RoHS Certificate of Compliance

EU Directives 2011/65/EU and 2015/863 restrict the use of the 10 substances below in the manufacture of specified types of electrical equipment.

Whilst this restriction does not legally apply to components, it is recognised that component “compliance” is relevant to many customers.

RS definition of RoHS Compliance:

  • The product does not contain any of the restricted substances in concentrations and applications banned by the Directive,
  • and for components, the product is capable of being worked on at the higher temperatures required by lead–free soldering

The restricted substances and maximum allowed concentrations in the homogenous material are, by weight:

SubstanceConcentration
Lead0.1%
Mercury0.1%
PBB (Polybrominated Biphenyls)0.1%
PBDE ( Polybrominated Diphenyl Ethers)0.1%
Hexavalent Chromium0.1%
Cadmium0.01%
DEHP (Bis (2-Ethylhexl) phthalate)0.1%
BBP (Benzyl butyl phthalate)0.1%
DBP (Dibutyl phthalate)0.1%
DIBP (Diisobutyl phthalate)0.1%

The supplier of the item listed below has informed RS Components that the product is "RoHS Compliant".

RS Components has taken all reasonable steps to confirm this statement. Information relates only to products sold on or after the date of this certificate.

Compliant Product Details
RS stock number 7085386
Product description Vishay, ILQ2 DC Input Transistor Output Quad Optocoupler, Through Hole, 16-Pin PDIP
Manufacturer / Brand Vishay
Manufacturer part number ILQ2

RS Components Ltd, Birchington Road, Corby, Northants, NN17 9RS, UK

Statement of Conformity

RS Components
Statement of Conformity

This statement confirms that the product detailed below complies with the specifications currently published in the RS media and has been subject to the strict quality conditions imposed by RS Components’ internal management systems. Furthermore and where applicable, it confirms that all relevant semiconductor devices have been handled and packed under conditions that meet the administrative and technical requirements of ANSI/ESD S20.20 and EN61340-5-1 electrostatics control standards.

Compliant Product Details
RS stock number 7085386
Product description Vishay, ILQ2 DC Input Transistor Output Quad Optocoupler, Through Hole, 16-Pin PDIP
Manufacturer / Brand Vishay
Manufacturer part number ILQ2

The foregoing information relates to product sold on, or after, the date shown below.

RS COMPONENTS

Date Mar 29, 2024

RS Components Pte Ltd Robinson Road, P.O. Box 1582, Singapore 903132


Product Details

Optocouplers, Vishay Semiconductor

Optocoupler, Transistor Output, IL, ILD, ILQ Series, Vishay Semiconductor


Specifications

Attribute Value
Brand Vishay
Input Current Type DC
Maximum Forward Voltage 1.65 V
Maximum Input Current 60 mA
Number of Pins 16
Mounting Type Through Hole
Typical Fall Time 2.2 µs
Package Type PDIP
Number of Channels 4
Maximum Current Transfer Ratio 500 %
Minimum Current Transfer Ratio 100 %
Typical Rise Time 2.6 µs
Output Device Transistor
Isolation Voltage 5300 V ac
Checking stock...
VND
361,095.00
Out of stock
Price Pack (1 Pack of 5)
Pack(s)Per Pack(VND)Per Unit(VND)
1361,095.0072,219.00
*price per unit indicative
