Nordic Semiconductor Bluetooth Smart (BLE) Development Kit for nRF51422, nRF51822 2.4GHz NRF51-DK
- RS Stock No.:
- 8855823
- Mfr. Prt No.:
- NRF51-DK
- Brand:
- Nordic Semiconductor
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
EU Directives 2011/65/EU and 2015/863 restrict the use of the 10 substances below in the manufacture of specified types of electrical equipment.
Whilst this restriction does not legally apply to components, it is recognised that component “compliance” is relevant to many customers.
RS definition of RoHS Compliance:
- The product does not contain any of the restricted substances in concentrations and applications banned by the Directive,
- and for components, the product is capable of being worked on at the higher temperatures required by lead–free soldering
The restricted substances and maximum allowed concentrations in the homogenous material are, by weight:
| Substance | Concentration |
| Lead | 0.1% |
| Mercury | 0.1% |
| PBB (Polybrominated Biphenyls) | 0.1% |
| PBDE ( Polybrominated Diphenyl Ethers) | 0.1% |
| Hexavalent Chromium | 0.1% |
| Cadmium | 0.01% |
| DEHP (Bis (2-Ethylhexl) phthalate) | 0.1% |
| BBP (Benzyl butyl phthalate) | 0.1% |
| DBP (Dibutyl phthalate) | 0.1% |
| DIBP (Diisobutyl phthalate) | 0.1% |
The supplier of the item listed below has informed RS Components that the product is "RoHS Compliant".
RS Components has taken all reasonable steps to confirm this statement. Information relates only to products sold on or after the date of this certificate.
| RS stock number | 8855823 |
| Product description | Nordic Semiconductor Bluetooth Smart (BLE) Development Kit for nRF51422, nRF51822 2.4GHz NRF51-DK |
| Manufacturer / Brand | Nordic Semiconductor |
| Manufacturer part number | NRF51-DK |
RS Components Ltd, Birchington Road, Corby, Northants, NN17 9RS, UK
Statement of Conformity
This statement confirms that the product detailed below complies with the specifications currently published in the RS media and has been subject to the strict quality conditions imposed by RS Components’ internal management systems. Furthermore and where applicable, it confirms that all relevant semiconductor devices have been handled and packed under conditions that meet the administrative and technical requirements of ANSI/ESD S20.20 and EN61340-5-1 electrostatics control standards.
| RS stock number | 8855823 |
| Product description | Nordic Semiconductor Bluetooth Smart (BLE) Development Kit for nRF51422, nRF51822 2.4GHz NRF51-DK |
| Manufacturer / Brand | Nordic Semiconductor |
| Manufacturer part number | NRF51-DK |
The foregoing information relates to product sold on, or after, the date shown below.
RS COMPONENTS
| Date | Apr 29, 2024 |
RS Components Pte Ltd Robinson Road, P.O. Box 1582, Singapore 903132
Country of Origin: PH
Product Details
Bluetooth is an industrial specification (IEEE 802.15.1) for short-range Wireless Personal Area Networks (WPANs).

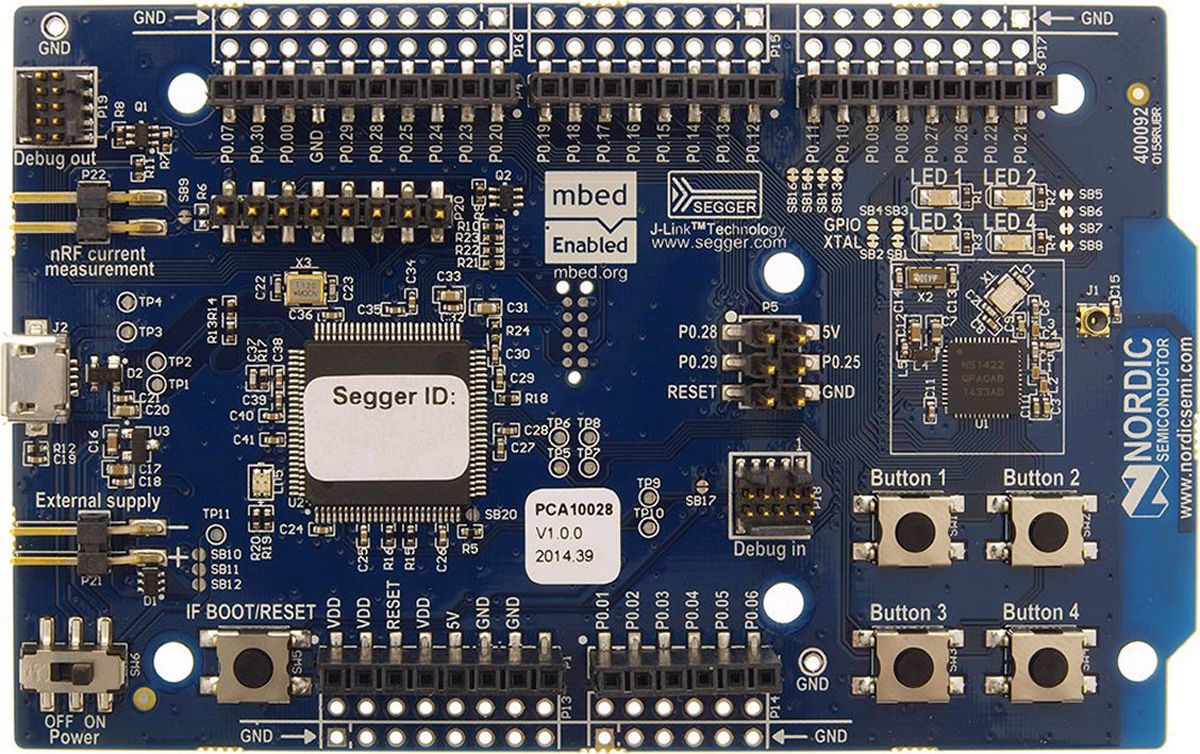

nRF51-DK ANT™/Bluetooth Smart/2.4GHz Wireless Kit
The Nordic Semiconductor nRF51-DK Development kit is designed for Bluetooth Smart, ANT and other 2.4GHz wireless applications. The development platform is based on the nRF51 series of wireless System-on-Chips and supports both the nRF51822 and nRF51422 devices.
The Over the Air (OTA) Device Firmware Upgrade (DFU) means the user can release firmware updates to the cloud which can then be programmed via a smart phone, PC or tablet to the nRF51 series device. The Development Kit supports the standard Nordic Software Development Tool-chain using Keil, IAR and GCC and for rapid prototyping the ARM mbed tool-chain. Additionally the nRF51 kit can be used as Bluetooth Smart packet sniffer using Nordic nRF Sniffer software which will allow you to capture and analyse the data.
SUPPLIED_WITH : 5 x nRF51422 samples
Supports ARM mbed
Compatible with Arduino Rev 3 Shields
Virtual COM Port interface via UART
microUSB connector
4 x User pushbuttons
4 x User LEDs
Segger J-Link OB and ARM mbed CMSIS-DAP Program/Debug on board
micro SMA antenna test socket
Current measurement connector
Holder for CR2032 coin cell battery
Suitable battery: RS 597-201 or RS 457-4757
Specifications
| Attribute | Value |
| Brand | Nordic Semiconductor |
| RF Technology | Bluetooth Smart (BLE) |
| Kit Classification | Development Kit |
| For Use With | nRF51422, nRF51822 |
| Frequency | 2.4 GHz |
