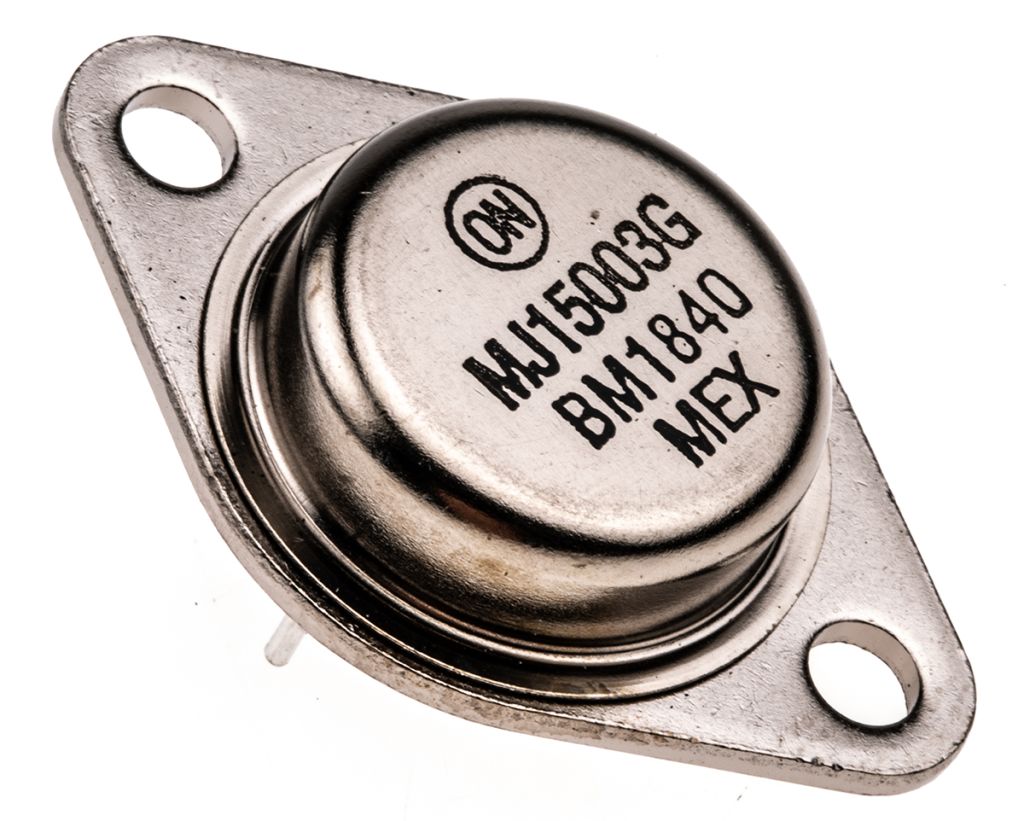

ON Semi MJ15003G NPN Bipolar Transistor, 20 A, 140 V, 2-Pin TO-204AA
- RS Stock No.:
- 0296267
- Mfr. Prt No.:
- MJ15003G
- Brand:
- ON Semiconductor
Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
Statement of Conformity
RS Components
Statement of Conformity
This statement confirms that the product detailed below complies with the specifications currently published in the RS media and has been subject to the strict quality conditions imposed by RS Components’ internal management systems. Furthermore and where applicable, it confirms that all relevant semiconductor devices have been handled and packed under conditions that meet the administrative and technical requirements of ANSI/ESD S20.20 and EN61340-5-1 electrostatics control standards.
Compliant Product Details
| RS stock number | 0296267 |
| Product description | ON Semi MJ15003G NPN Bipolar Transistor, 20 A, 140 V, 2-Pin TO-204AA |
| Manufacturer / Brand | ON Semiconductor |
| Manufacturer part number | MJ15003G |
The foregoing information relates to product sold on, or after, the date shown below.
RS COMPONENTS
| Date | Apr 16, 2024 |
RS Components Pte Ltd Robinson Road, P.O. Box 1582, Singapore 903132
Product Details
NPN Power Transistors, ON Semiconductor
Specifications
| Attribute | Value |
| Brand | ON Semiconductor |
| Maximum Power Dissipation | 250 W |
| Maximum Collector Base Voltage | 140 V |
| Mounting Type | Through Hole |
| Transistor Configuration | Single |
| Maximum Emitter Base Voltage | 5 V |
| Maximum DC Collector Current | 20 A |
| Dimensions | 39.37 x 26.67 x 8.51 mm |
| Maximum Collector Emitter Voltage | 140 V |
| Number of Elements per Chip | 1 |
| Package Type | TO-204AA |
| Transistor Type | NPN |
| Pin Count | 2 |
| Maximum Operating Frequency | 2 MHz |
| Maximum Operating Temperature | +200 °C |
