Keithley

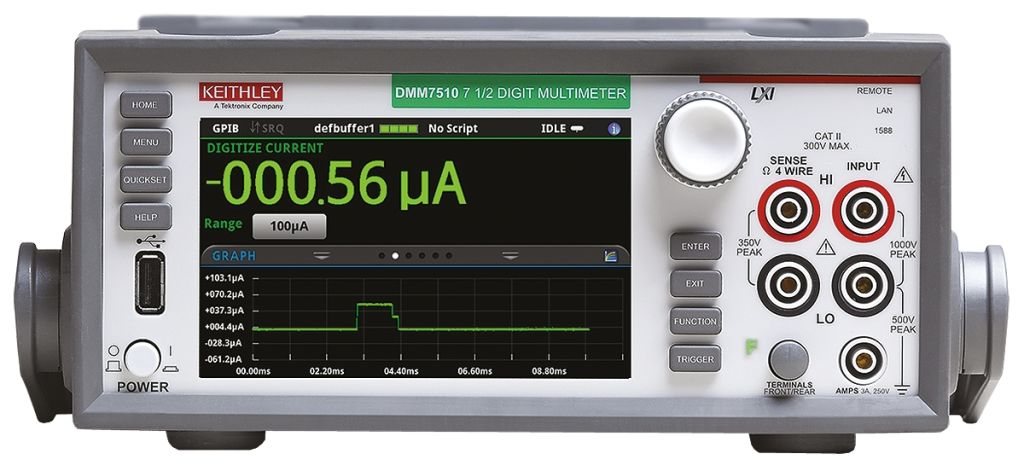

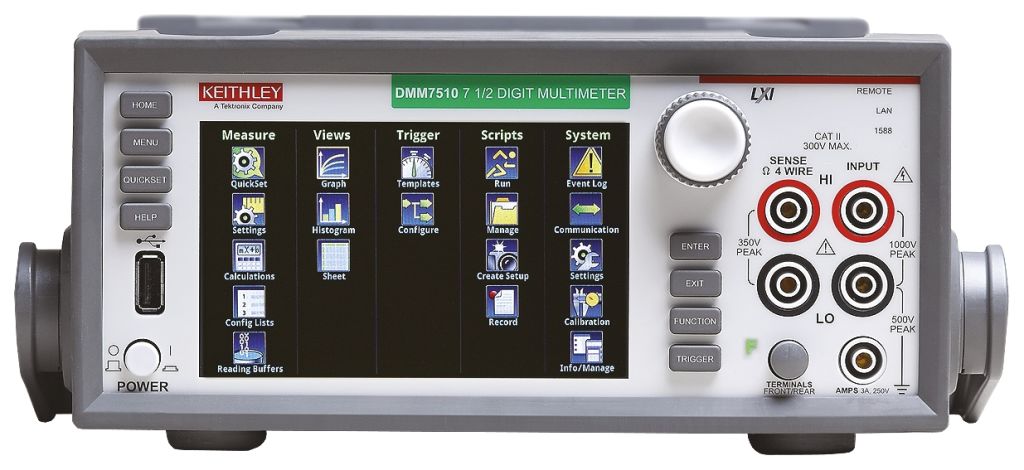

Keithley DMM7510 7-digit Graphical Sampling Multimeter
Keithley DMM7510 7 digit precision graphical sampling digital multimeter is a high-resolution multimeter. The DMM7510 combines all the advantages of a precision digital multimeter with a touch screen display, high-speed performance and high resolution digitiser. The whole package provides you with one of the first graphical sampling digital multimeters. This multimeter gives you unprecedented flexibility of signal analysis together with ease in observing, interacting with and exploring measurements using 'pinch and zoom'. The DMM7510 with pA-level sensitivity and 1Msample/s sampling accurately measures ultra-low sleep mode currents and transmit drain currents for wireless devices.
SUPPLIED_WITH :
Features and Benefits:
3 to 7 digit resolution
14 PPM basic one-year DCV accuracy
100mV, 1Ω and 10μA ranges for sensitivity to measure low level signals
Accurate low resistance measurements with offset-compensated ohms, four-wire and dry circuit functions
Capture and display waveforms or transients with 1MS/s digitizer
Large internal memory buffer
Auto-calibration feature

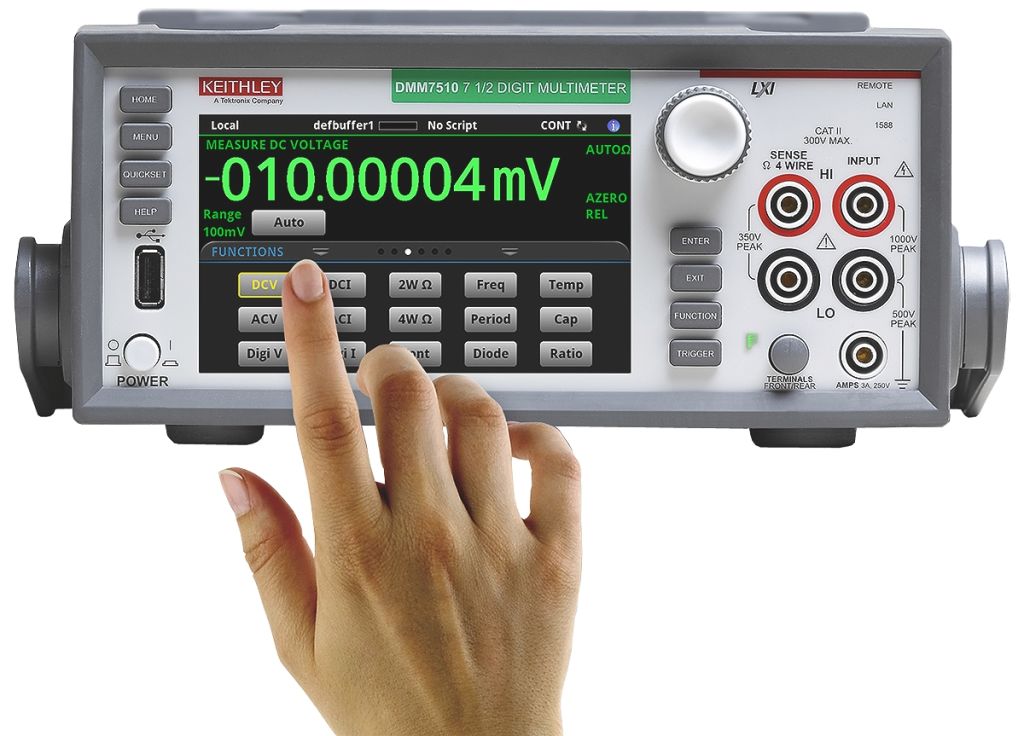

5-inch, high resolution touchscreen interface
Front panel USB memory port
Additional Features:
Best accuracy, low noise
Digitising rate 1000000 reading/s
Measures current drain in all IoT devices operating states
Capture μA sleep mode currents
Transmit currents up to 1 A combining sensitive and fast current measurements
Measures low signals with high sensitivity
Captures and stores more than 27 million readings
Observe, interact with and explore measurements

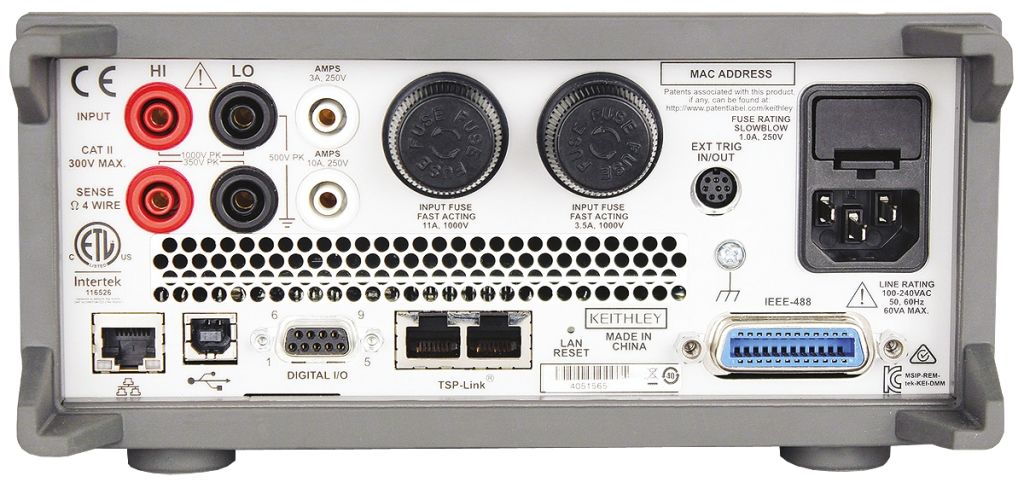

Connectivity GPIB / USB (TMC) LAN (LXI)
What Is Included?
Test Leads
USB Cable
TSO-Link/Ethernet cable
CD Documentation and qucik start guide plus
Test script builder software
KickStart Startup software
LabVIEW and IVI Drivers
Specifications
| Attribute | Value |
| Brand | Keithley |
| Width | 255 mm |
| Length | 425 mm |
| Absolute Maximum Resistance Measurement | 1 GΩ |
| Absolute Maximum Capacitance Measurement | 1 mF |
| AC Current Measurement Resolution | 1 nA ac |
| Maximum Frequency | 500 kHz |
| Dimensions | 425 x 255 x 106 mm |
| DC Voltage Measurement Resolution | 10 nV dc |
| Functions Measured | AC Current, AC Voltage, DC Current, DC Voltage, Resistance, Temperature |
| Multimeter Type | Bench |
| Best Temperature Measurement Accuracy | ±0.06 (4-Wire) °C, ±0.75 (3-Wire) °C |
| Resistance Measurement Resolution | 100 nΩ |
| True RMS | Yes |
| Best Capacitance Measurement Accuracy | 0.4+0.1 % |
| Minimum Operating Temperature | 0 °C |
| Capacitance Measurement Resolution | 0.1 pF |
| Height | 106 mm |
| DC Current Measurement Resolution | 1 µA dc |
| AC Voltage Measurement Resolution | 0.1 µV ac |
| Model Number p | DMM7510 |
| Battery Life | 3 yr |
| Weight | 4.1 kg |
| Absolute Maximum DC Current Measurement | 10 A dc |
| Absolute Maximum AC Current Measurement | 10 A ac |
| Temperature Measurement Resolution | 0.01 °C |
| Absolute Maximum Temperature Measurement | +850 °C |
| Absolute Maximum AC Voltage Measurement | 700 V ac |
| Absolute Maximum DC Voltage Measurement | 1000 V dc |
| Display Type | Digital |
| Maximum Operating Temperature | +50 °C |
