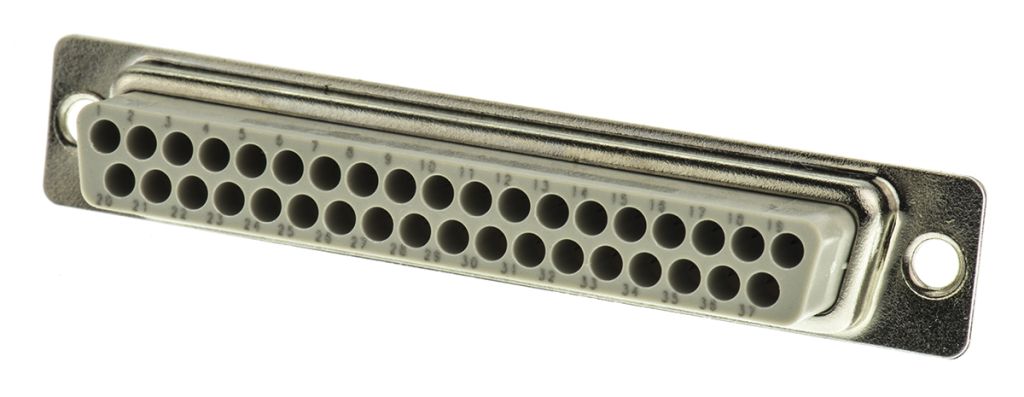

HARTING 37 Way Cable Mount D-sub Connector Socket

RS Stock No.:
9230941
Mfr. Prt No.:
09670374701
Brand:
HARTING

Technical Reference


Legislation and Compliance

RoHS Certificate of Compliance

RS Components
RoHS Certificate of Compliance

EU Directives 2011/65/EU and 2015/863 restrict the use of the 10 substances below in the manufacture of specified types of electrical equipment.

Whilst this restriction does not legally apply to components, it is recognised that component “compliance” is relevant to many customers.

RS definition of RoHS Compliance:

  • The product does not contain any of the restricted substances in concentrations and applications banned by the Directive,
  • and for components, the product is capable of being worked on at the higher temperatures required by lead–free soldering

The restricted substances and maximum allowed concentrations in the homogenous material are, by weight:

SubstanceConcentration
Lead0.1%
Mercury0.1%
PBB (Polybrominated Biphenyls)0.1%
PBDE ( Polybrominated Diphenyl Ethers)0.1%
Hexavalent Chromium0.1%
Cadmium0.01%
DEHP (Bis (2-Ethylhexl) phthalate)0.1%
BBP (Benzyl butyl phthalate)0.1%
DBP (Dibutyl phthalate)0.1%
DIBP (Diisobutyl phthalate)0.1%

The supplier of the item listed below has informed RS Components that the product is "RoHS Compliant".

RS Components has taken all reasonable steps to confirm this statement. Information relates only to products sold on or after the date of this certificate.

Compliant Product Details
RS stock number 9230941
Product description HARTING 37 Way Cable Mount D-sub Connector Socket
Manufacturer / Brand HARTING
Manufacturer part number 09670374701

RS Components Ltd, Birchington Road, Corby, Northants, NN17 9RS, UK

Statement of Conformity

RS Components
Statement of Conformity

This statement confirms that the product detailed below complies with the specifications currently published in the RS media and has been subject to the strict quality conditions imposed by RS Components’ internal management systems. Furthermore and where applicable, it confirms that all relevant semiconductor devices have been handled and packed under conditions that meet the administrative and technical requirements of ANSI/ESD S20.20 and EN61340-5-1 electrostatics control standards.

Compliant Product Details
RS stock number 9230941
Product description HARTING 37 Way Cable Mount D-sub Connector Socket
Manufacturer / Brand HARTING
Manufacturer part number 09670374701

The foregoing information relates to product sold on, or after, the date shown below.

RS COMPONENTS

Date Mar 29, 2024

RS Components Pte Ltd Robinson Road, P.O. Box 1582, Singapore 903132

Country of Origin: DE


Product Details

'D' Sub-Miniature Connection System

Sub-D connectors for crimp contacts

Note

Example of contacts, see order code 117-3907, crimp tool 100-8566, extractor 100-7850.


Specifications

Attribute Value
Brand HARTING
Termination Method Crimp
Depth 17.9 mm
Length 69.3 mm
Number of Contacts 37
Width 12.5 mm
Dimensions 69.3 x 12.5 x 17.9 mm
Housing Material Metal
Gender Female
Mounting Type Cable Mount
Body Orientation Straight
Checking stock...
VND
2,622,328.00
Out of stock
Price Box (1 Box of 50)
Box(s)Per Box(VND)Per Unit(VND)
12,622,328.0052,446.56
*price per unit indicative
