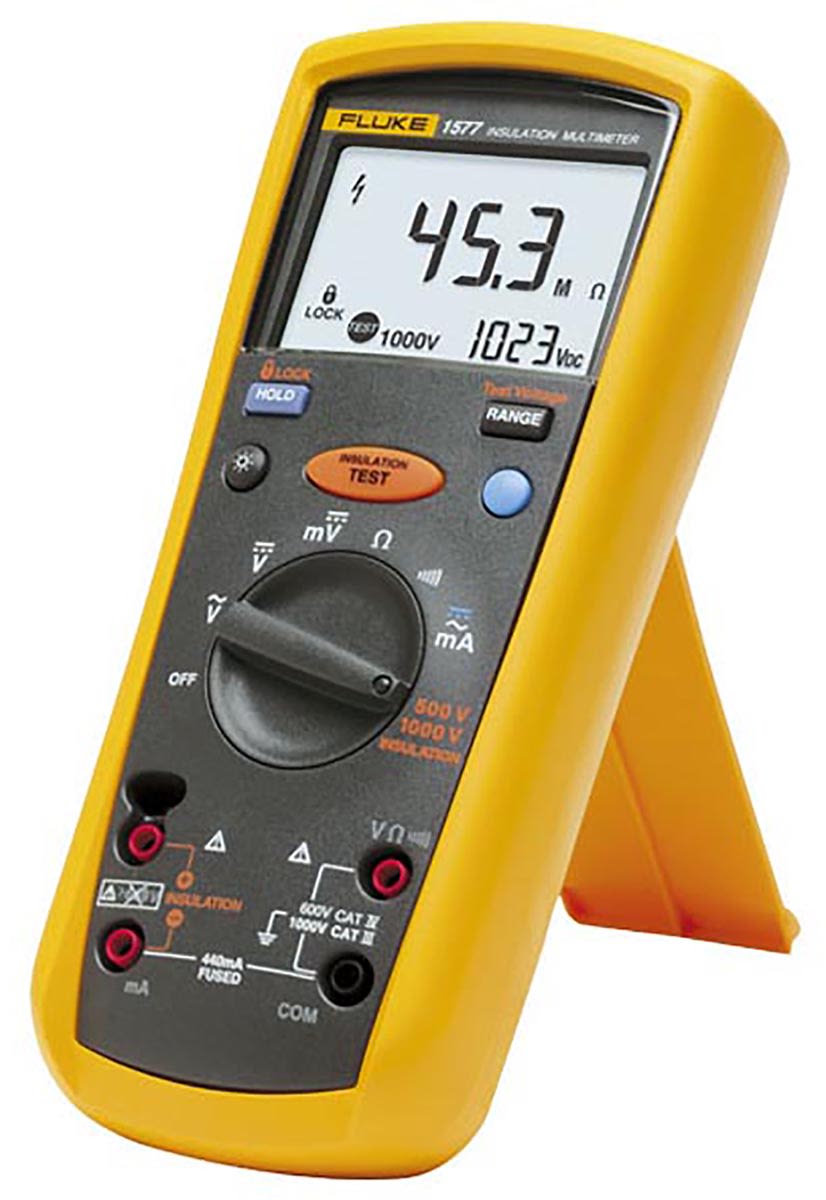

Fluke 1577, Insulation Tester, 1000V, 2GΩ, CAT III 1000V
- RS Stock No.:
- 5122492
- Mfr. Prt No.:
- FLUKE-1577
- Brand:
- Fluke
Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
Statement of Conformity
RS Components
Statement of Conformity
This statement confirms that the product detailed below complies with the specifications currently published in the RS media and has been subject to the strict quality conditions imposed by RS Components’ internal management systems. Furthermore and where applicable, it confirms that all relevant semiconductor devices have been handled and packed under conditions that meet the administrative and technical requirements of ANSI/ESD S20.20 and EN61340-5-1 electrostatics control standards.
Compliant Product Details
| RS stock number | 5122492 |
| Product description | Fluke 1577, Insulation Tester, 1000V, 2GΩ, CAT III 1000V |
| Manufacturer / Brand | Fluke |
| Manufacturer part number | FLUKE-1577 |
The foregoing information relates to product sold on, or after, the date shown below.
RS COMPONENTS
| Date | Apr 25, 2024 |
RS Components Pte Ltd Robinson Road, P.O. Box 1582, Singapore 903132
Country of Origin: US
Product Details
Specifications
| Attribute | Value |
| Brand | Fluke |
| Width | 100 mm |
| Minimum Test Voltage | 500 V |
| Maximum Insulation Resistance Measurement | 2 GΩ |
| Dimensions | 203 x 100 x 50 mm |
| Minimum Operating Temperature | -20 °C |
| Height | 50 mm |
| Test Current | 1 mA |
| Model Number p | 1577 |
| Battery Life | 1000 h |
| Weight | 550 g |
| Safety Category Level | CAT III, CAT IV |
| Safety Category Voltage | 600 V, 1000 V |
| Battery Type | AA |
| Safety Category | CAT III 1000 V, CAT IV 600 V |
| Power Source | Battery |
| Length | 203 mm |
| Maximum Test Voltage | 1000 V |
| Tester Type | Insulation Tester |
| Maximum Operating Temperature | +55 °C |
