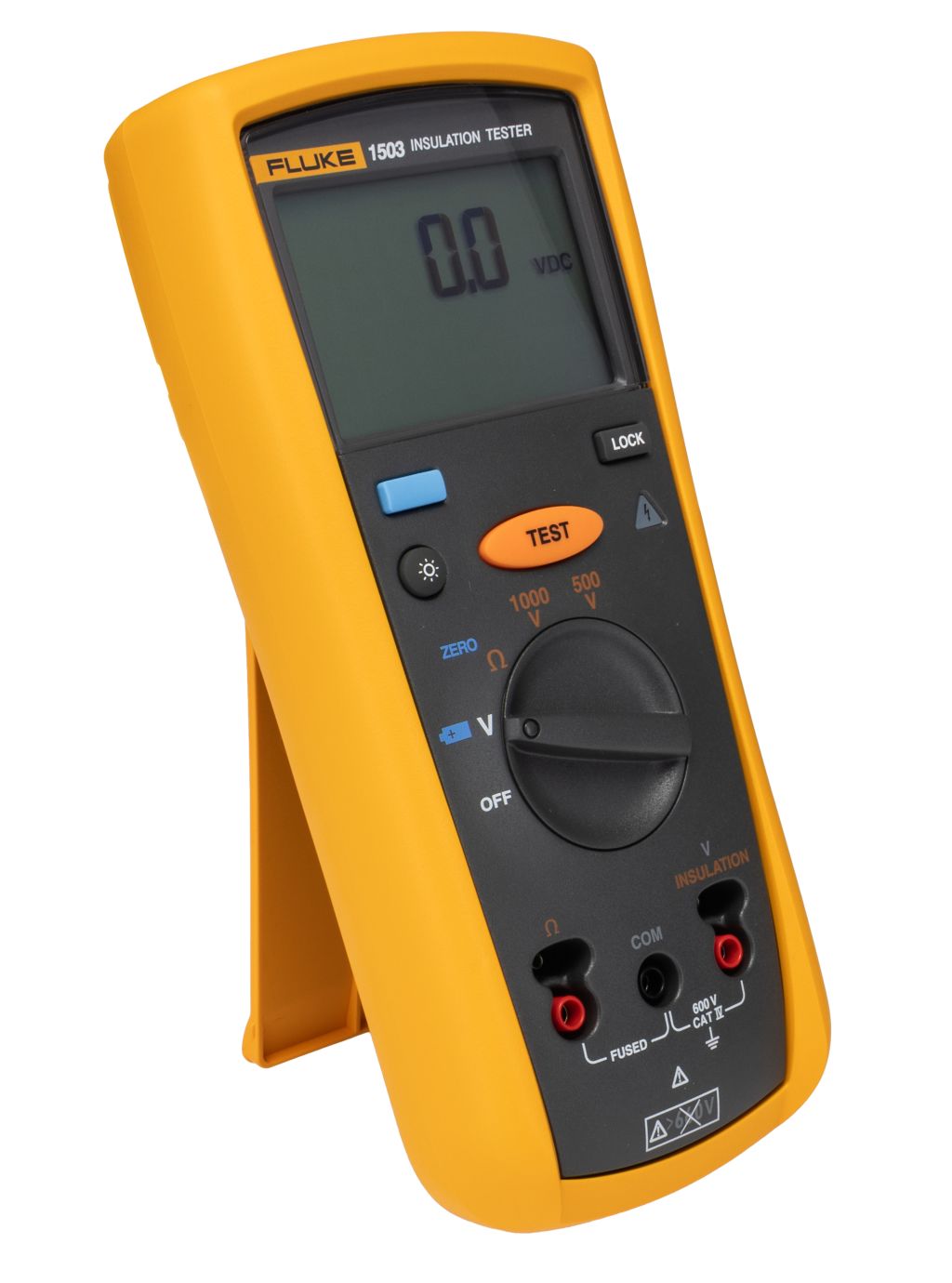

Fluke 1503, Insulation Tester, 1000V, 2GΩ, CAT III 600V
- RS Stock No.:
- 5185998
- Mfr. Prt No.:
- FLUKE 1503
- Brand:
- Fluke
Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
Statement of Conformity
RS Components
Statement of Conformity
This statement confirms that the product detailed below complies with the specifications currently published in the RS media and has been subject to the strict quality conditions imposed by RS Components’ internal management systems. Furthermore and where applicable, it confirms that all relevant semiconductor devices have been handled and packed under conditions that meet the administrative and technical requirements of ANSI/ESD S20.20 and EN61340-5-1 electrostatics control standards.
Compliant Product Details
| RS stock number | 5185998 |
| Product description | Fluke 1503, Insulation Tester, 1000V, 2GΩ, CAT III 600V |
| Manufacturer / Brand | Fluke |
| Manufacturer part number | FLUKE 1503 |
The foregoing information relates to product sold on, or after, the date shown below.
RS COMPONENTS
| Date | Apr 19, 2024 |
RS Components Pte Ltd Robinson Road, P.O. Box 1582, Singapore 903132
Country of Origin: CN
Product Details
Specifications
| Attribute | Value |
| Brand | Fluke |
| Minimum Operating Temperature | -20 °C |
| Maximum Insulation Resistance Measurement | 2 GΩ |
| Height | 50 mm |
| Test Current | 200 mA |
| Model Number p | 1503 |
| Weight | 550 g |
| Safety Category Level | CAT III, CAT IV |
| Maximum Test Voltage | 1000 V |
| Tester Type | Insulation Tester |
| Safety Category Voltage | 600 V |
| Battery Type | AA |
| Power Source | Battery |
| Width | 100 mm |
| Length | 203 mm |
| Minimum Test Voltage | 500 V |
| Dimensions | 203 x 100 x 50 mm |
| Safety Category | CAT III 600 V, CAT IV 600 V |
| Display Type | Graphic Display - Backlit |
| Maximum Operating Temperature | +55 °C |
