Fluke 115 Handheld Digital Multimeter
- RS Stock No.:
- 6161454
- Mfr. Prt No.:
- FLUKE-115C
- Brand:
- Fluke
Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
Statement of Conformity
This statement confirms that the product detailed below complies with the specifications currently published in the RS media and has been subject to the strict quality conditions imposed by RS Components’ internal management systems. Furthermore and where applicable, it confirms that all relevant semiconductor devices have been handled and packed under conditions that meet the administrative and technical requirements of ANSI/ESD S20.20 and EN61340-5-1 electrostatics control standards.
RS stock number | 6161454 |
Product description | Fluke 115 Handheld Digital Multimeter |
Manufacturer / Brand | Fluke |
Manufacturer part number | FLUKE-115C |
The foregoing information relates to product sold on, or after, the date shown below.
RS COMPONENTS
Date | Dec 14, 2024 |
RS Components Pte Ltd Robinson Road, P.O. Box 1582, Singapore 903132
Country of Origin: CN
Product Details

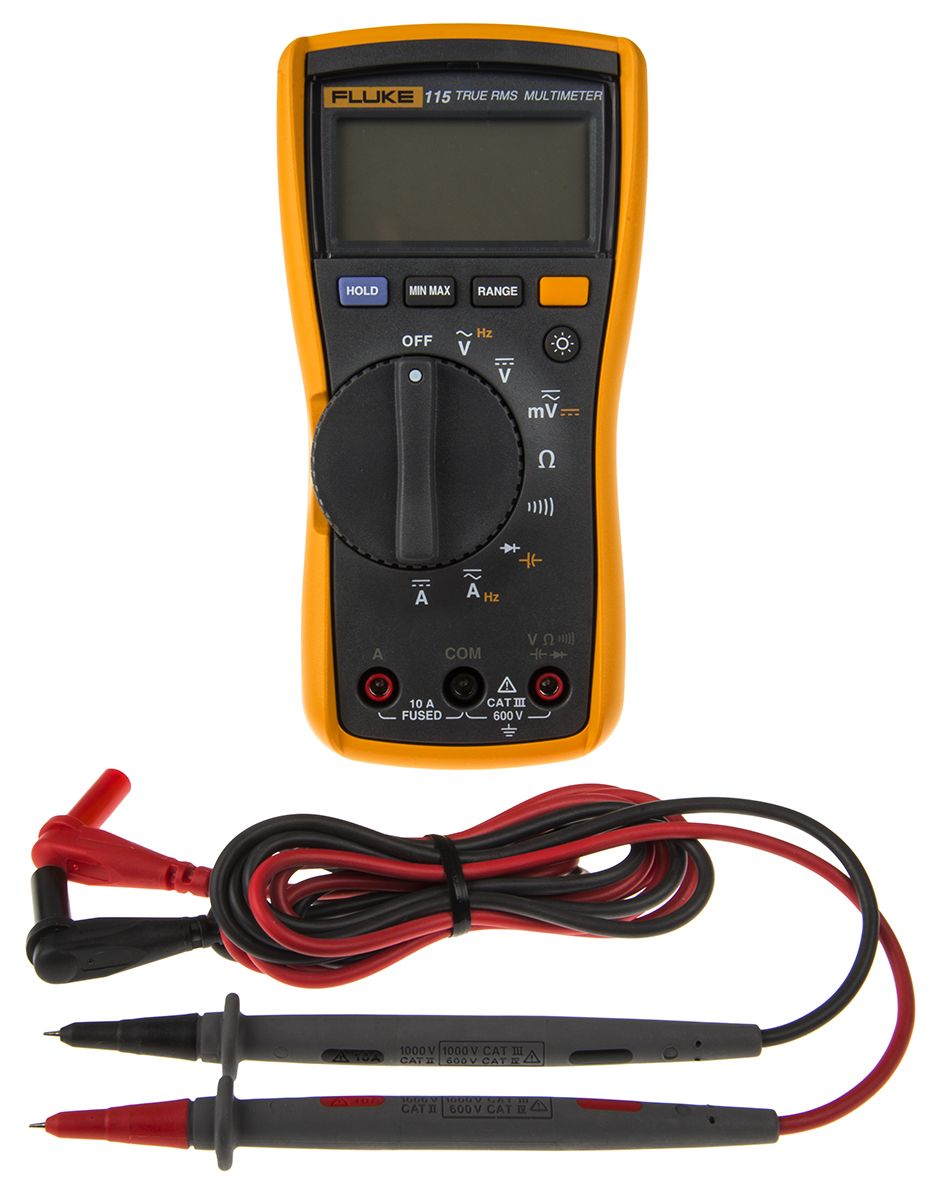

Fluke 115 Multimeter
With its simple operation, compact design and ease of use, the Fluke 115 True RMS digital multimeter provides the perfect answer for general purpose electrical and electronic test requirements. An everyday multimeter for technicians, the 115 is for in field service, industrial, and applications where more than the basic functions simplify work.
The Fluke 115 displays True RMS voltage and current readings with 600 count resolution, continuity and capacitance, making it perfect for quick verifications and field service use. The model is supplied with a test lead and manual.
Fluke 115 Digital Multimeters are independently tested for safe use in CAT III 600V Environments.
TL75 Test leads, holster, user’s manual and 9
Note
For Calibrated Articles - Please note that accuracy is specified for 1 year after calibration, at operating temperatures of 18 °C to 28 °C, with relative humidity at 0 % to 95 %.
Features and Benefits
• Large white LED backlight to work in poorly lit areas
• Resistance and continuity
• Frequency and capacitance
• Maximum Voltage ac/dc 600V
• 10A ac/dc current measurement
• Min/Max/Average to record signal fluctuations
• CAT III 600 V safety rated
Addtional Specifications
• DC Voltage Accuracy: 0.5% + 2
• DC Voltage Lowest Resolution: 0.1mV
• AC Voltage Accuracy: 2.0% + 3
• AC Voltage Lowest Resolution: 0.1mV
• AC Voltage Max Frequency: 1kHz
• Display Count 6000
• Display Update 4/sec
• Bar Graph Segments 33
• Bar Graph Update 32/sec
Comparison with Fluke 117 (RS <a href="#" title="616-1460">616-1460)
Weight and Size
Both multimeters can offer the benefit of portability with these two models being lightweight and compact. Both of them have a weight of 550 g.
Maximum Voltage
Both of these multimeters have a maximum voltage of 600 V.
Battery
The battery life within these two models is vitally important, so they function for a long time. They are equipped with a 9 V alkaline battery, both of which can provide up too 400 hours of power without backlight.
Safety
Both models are also regarded as being excellent when it comes to safety. They have a CAT III safety rating.
Warranty
Regardless of the model that you choose, you have peace of mind since they are both backed by 3 years of warranty from the manufacturer.
Applications
This is a difference between the two models. The Fluke 115 is more for general testing and Fluke 117 is for more specialised testing. For many DIY enthusiasts, the 115 will suffice.
Specifications
Attribute | Value |
Brand | Fluke |
Absolute Maximum DC Voltage Measurement | 600 V dc |
Absolute Maximum Resistance Measurement | 40 MΩ |
Maximum Operating Temperature | +50 °C |
Best AC Current Accuracy | ±1.5% + 3 Digits |
Width | 84 mm |
Absolute Maximum Capacitance Measurement | 9.999 F |
Maximum Frequency | 1 kHz |
Dimensions | 46 x 84 x 167 mm |
Multimeter Type | Handheld |
True RMS | Yes |
Best AC Voltage Accuracy | ±1% + 3 Digits |
Resistance Measurement Resolution | 100 mΩ |
Best Capacitance Measurement Accuracy | ±1.9% + 2 Digits |
Minimum Operating Temperature | -10 °C |
Height | 167 mm |
AC Voltage Measurement Resolution | 0.1 mV ac |
Model Number p | 115 |
Battery Life | 400 h |
Weight | 550 g |
Safety Category Level | CAT III |
Best DC Current Accuracy | ±1% + 3 Digits |
Absolute Maximum AC Current Measurement | 10 A ac |
Safety Category Voltage | 600 V |
Battery Type | 9V |
Absolute Maximum AC Voltage Measurement | 600 V ac |
Best Resistance Measurement Accuracy | ±5% + 2 Digits |
Display Type | Digital |
Length | 46 mm |
AC Current Measurement Resolution | 0.001 A ac |
Best DC Voltage Accuracy | ±0.5% + 2 Digits |
DC Voltage Measurement Resolution | 0.1 mV dc |
Functions Measured | AC Current, AC Voltage, Capacitance, Continuity, DC Current, DC Voltage, Diode, Frequency, Resistance |
Capacitance Measurement Resolution | 1 nF |
DC Current Measurement Resolution | 0.001 A dc |
Absolute Maximum DC Current Measurement | 10 A dc |
