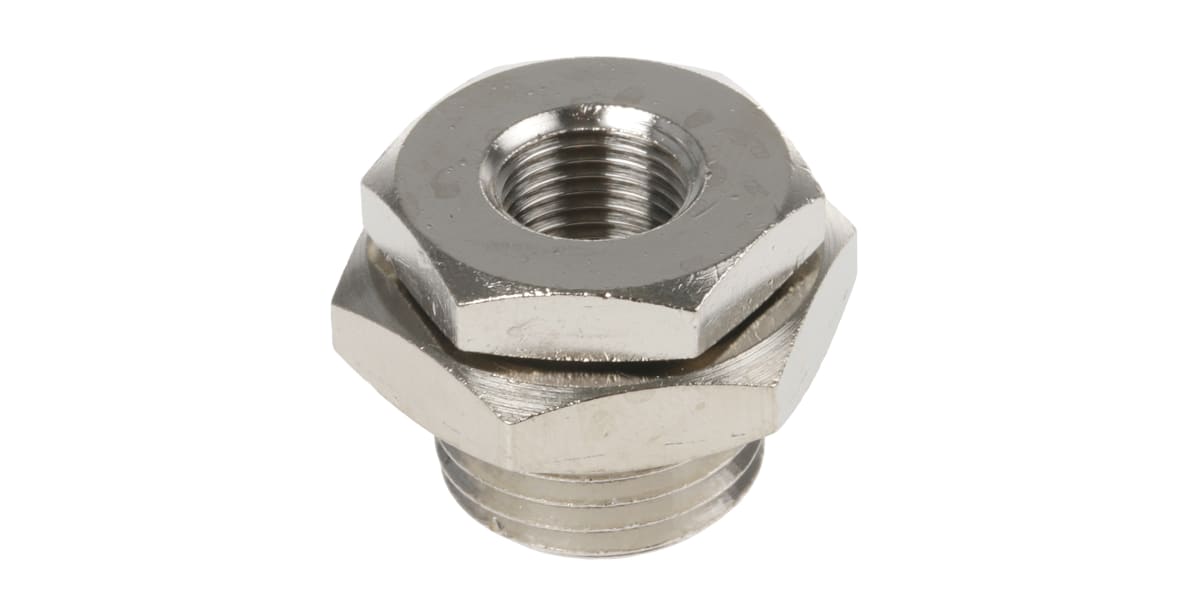

Legris 0920 Series Bulkhead Threaded Adaptor, G 1/8 Female to M16 Male, Threaded Connection Style

RS Stock No.:
3676183
Mfr. Prt No.:
0920 00 10
Brand:
Legris

Technical Reference

Legislation and Compliance

RoHS Certificate of Compliance

RS Components
RoHS Certificate of Compliance

EU Directives 2011/65/EU and 2015/863 restrict the use of the 10 substances below in the manufacture of specified types of electrical equipment.

Whilst this restriction does not legally apply to components, it is recognised that component “compliance” is relevant to many customers.

RS definition of RoHS Compliance:

  • The product does not contain any of the restricted substances in concentrations and applications banned by the Directive,
  • and for components, the product is capable of being worked on at the higher temperatures required by lead–free soldering

The restricted substances and maximum allowed concentrations in the homogenous material are, by weight:

SubstanceConcentration
Lead0.1%
Mercury0.1%
PBB (Polybrominated Biphenyls)0.1%
PBDE ( Polybrominated Diphenyl Ethers)0.1%
Hexavalent Chromium0.1%
Cadmium0.01%
DEHP (Bis (2-Ethylhexl) phthalate)0.1%
BBP (Benzyl butyl phthalate)0.1%
DBP (Dibutyl phthalate)0.1%
DIBP (Diisobutyl phthalate)0.1%

The supplier of the item listed below has informed RS Components that the product is "RoHS Compliant".

RS Components has taken all reasonable steps to confirm this statement. Information relates only to products sold on or after the date of this certificate.

Compliant Product Details
RS stock number 3676183
Product description Legris 0920 Series Bulkhead Threaded Adaptor, G 1/8 Female to M16 Male, Threaded Connection Style
Manufacturer / Brand Legris
Manufacturer part number 0920 00 10

RS Components Ltd, Birchington Road, Corby, Northants, NN17 9RS, UK

Statement of Conformity

RS Components
Statement of Conformity

This statement confirms that the product detailed below complies with the specifications currently published in the RS media and has been subject to the strict quality conditions imposed by RS Components’ internal management systems. Furthermore and where applicable, it confirms that all relevant semiconductor devices have been handled and packed under conditions that meet the administrative and technical requirements of ANSI/ESD S20.20 and EN61340-5-1 electrostatics control standards.

Compliant Product Details
RS stock number 3676183
Product description Legris 0920 Series Bulkhead Threaded Adaptor, G 1/8 Female to M16 Male, Threaded Connection Style
Manufacturer / Brand Legris
Manufacturer part number 0920 00 10

The foregoing information relates to product sold on, or after, the date shown below.

RS COMPONENTS

Date Mar 29, 2024

RS Components Pte Ltd Robinson Road, P.O. Box 1582, Singapore 903132

Country of Origin: IT


Product Details

Adaptors, Bulkhead Fittings and Plugs

A range of nickel plated brass and brass threaded pneumatic fittings and adaptors to complement existing push-in fittings. Maximum operating pressure 60 bar, operating temperature range -10 to +80°C.

Bulkhead Connector - Female BSPP

Maximum operating pressure 60 bar,Operating temperature range -10 to +80°C


Specifications

Attribute Value
Brand Legris
Pneumatic Fitting Type Bulkhead Threaded Adaptor
Material Brass
Body Material Brass
Type Straight
Threaded Connection B Metric M16 x 1.5 Male
Minimum Operating Temperature -10 °C
Threaded Connection A G 1/8 Female
Threaded Connection B - Gender Male
Maximum Operating Temperature +80 °C
Finish Nickel Plated
Threaded Connection B - Thread Size M16 x 1.5
Manufacturer Series 0920
Threaded Connection A - Gender Female
Maximum Operating Pressure 60 bar
Threaded Connection A - Thread Standard G
Threaded Connection B - Thread Standard Metric
Threaded Connection A - Thread Size 1/8 in
Connector B M16 Male
Connector A G 1/8 Female
Connection Style Threaded
Checking stock...
VND
419,015.00
Out of stock
Price Pack (1 Pack of 3)
Pack(s)Per Pack(VND)Per Unit(VND)
1419,015.00139,671.67
*price per unit indicative
