Siretta DELTA40/x/SMAM/S/S/32 Blade Antenna with SMA Connector, 3G (UTMS), 4G (LTE)

RS Stock No.:
1248866
Mfr. Prt No.:
DELTA40/x/SMAM/S/S/32
Brand:
Siretta

Technical Reference

Legislation and Compliance

RoHS Certificate of Compliance

RS Components
RoHS Certificate of Compliance

EU Directives 2011/65/EU and 2015/863 restrict the use of the 10 substances below in the manufacture of specified types of electrical equipment.

Whilst this restriction does not legally apply to components, it is recognised that component “compliance” is relevant to many customers.

RS definition of RoHS Compliance:

  • The product does not contain any of the restricted substances in concentrations and applications banned by the Directive,
  • and for components, the product is capable of being worked on at the higher temperatures required by lead–free soldering

The restricted substances and maximum allowed concentrations in the homogenous material are, by weight:

SubstanceConcentration
Lead0.1%
Mercury0.1%
PBB (Polybrominated Biphenyls)0.1%
PBDE ( Polybrominated Diphenyl Ethers)0.1%
Hexavalent Chromium0.1%
Cadmium0.01%
DEHP (Bis (2-Ethylhexl) phthalate)0.1%
BBP (Benzyl butyl phthalate)0.1%
DBP (Dibutyl phthalate)0.1%
DIBP (Diisobutyl phthalate)0.1%

The supplier of the item listed below has informed RS Components that the product is "RoHS Compliant".

RS Components has taken all reasonable steps to confirm this statement. Information relates only to products sold on or after the date of this certificate.

Compliant Product Details
RS stock number 1248866
Product description Siretta DELTA40/x/SMAM/S/S/32 Blade Antenna with SMA Connector, 3G (UTMS), 4G (LTE)
Manufacturer / Brand Siretta
Manufacturer part number DELTA40/x/SMAM/S/S/32

RS Components Ltd, Birchington Road, Corby, Northants, NN17 9RS, UK

Statement of Conformity

RS Components
Statement of Conformity

This statement confirms that the product detailed below complies with the specifications currently published in the RS media and has been subject to the strict quality conditions imposed by RS Components’ internal management systems. Furthermore and where applicable, it confirms that all relevant semiconductor devices have been handled and packed under conditions that meet the administrative and technical requirements of ANSI/ESD S20.20 and EN61340-5-1 electrostatics control standards.

Compliant Product Details
RS stock number 1248866
Product description Siretta DELTA40/x/SMAM/S/S/32 Blade Antenna with SMA Connector, 3G (UTMS), 4G (LTE)
Manufacturer / Brand Siretta
Manufacturer part number DELTA40/x/SMAM/S/S/32

The foregoing information relates to product sold on, or after, the date shown below.

RS COMPONENTS

Date Mar 29, 2024

RS Components Pte Ltd Robinson Road, P.O. Box 1582, Singapore 903132

Country of Origin: TW


Product Details

Mobile Communication Antenna (GSM/GPRS/2G/3G/4G), Siretta

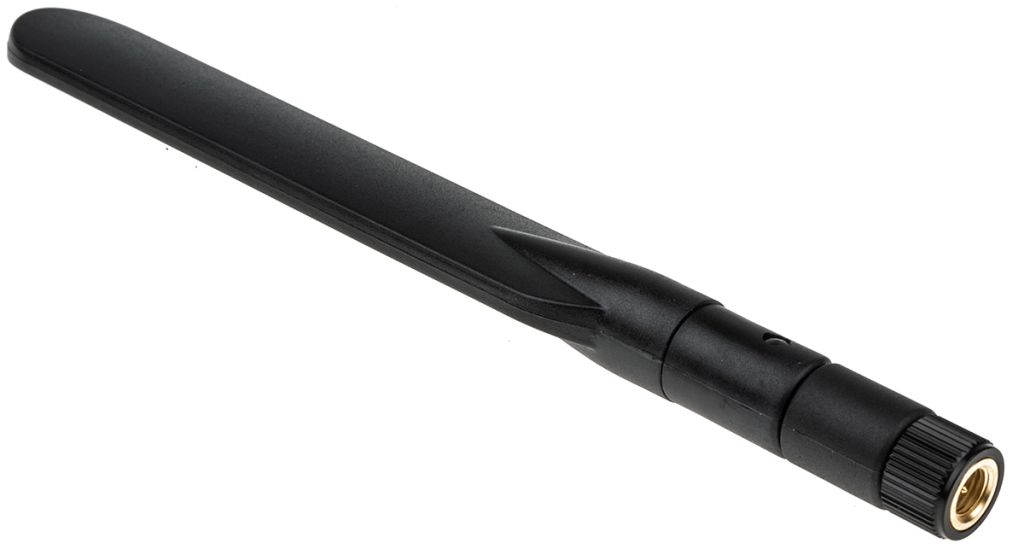

DELTA 40 - 4G Swivel Antenna (2600 MHz), Siretta

The Delta 40 direct connect 4G antenna is tuned to give good performance at 2600 MHz. This antenna also performs well at 3G frequencies.

4G/3G swivel antenna

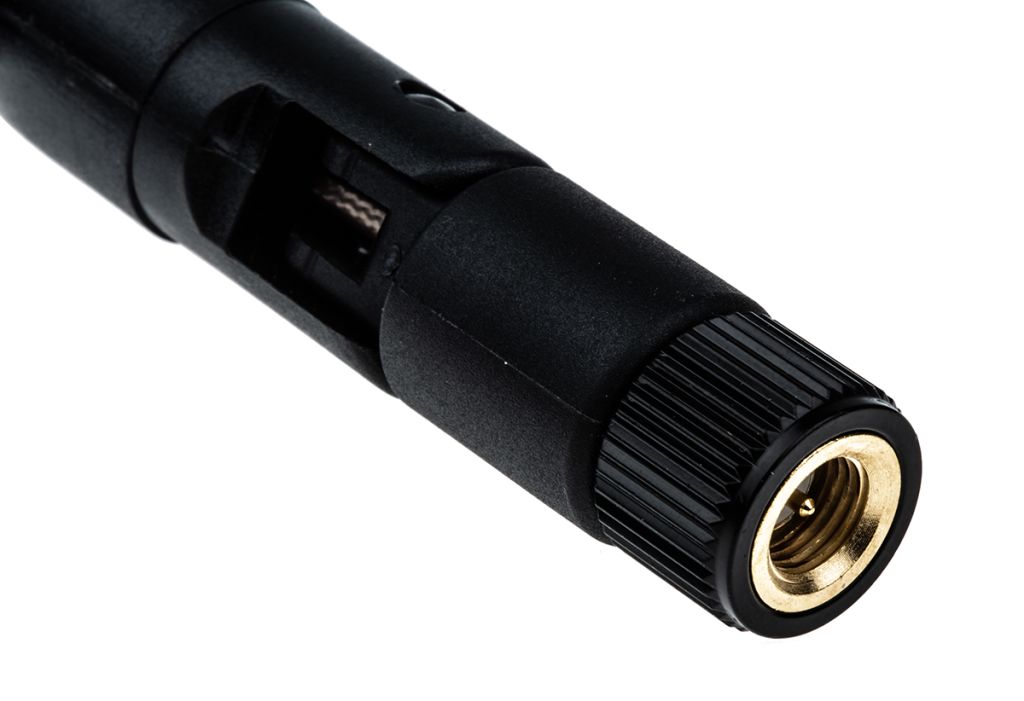

SMA male connector with a swivel / knuckle
3 dBi gain at 4G / 2600 MHz
161 mm length, 22 mm blade width

Frequency bands:
2500 to 2700 MHz @ 3 dBi gain
1710 to 2710 MHz @ 1 dBi gain
790 to 960 MHz @ 0dBi gain


Specifications

Attribute Value
Brand Siretta
Gain 2 dBi
Supported Frequency Bands 1710 → 2710 MHz, 2500 → 2700 MHz, 790 → 960 MHz
Frequency Range 1710 → 2710 MHz, 2500 → 2700 MHz, 790 → 960 MHz
Series DELTA 40
Antenna Mounting Type Direct
Antenna Physical Form Blade
RF Protocols 3G (UTMS), 4G (LTE)
Connector Type SMA
Includes Lead No
Connector Gender Male
Internal/External External
