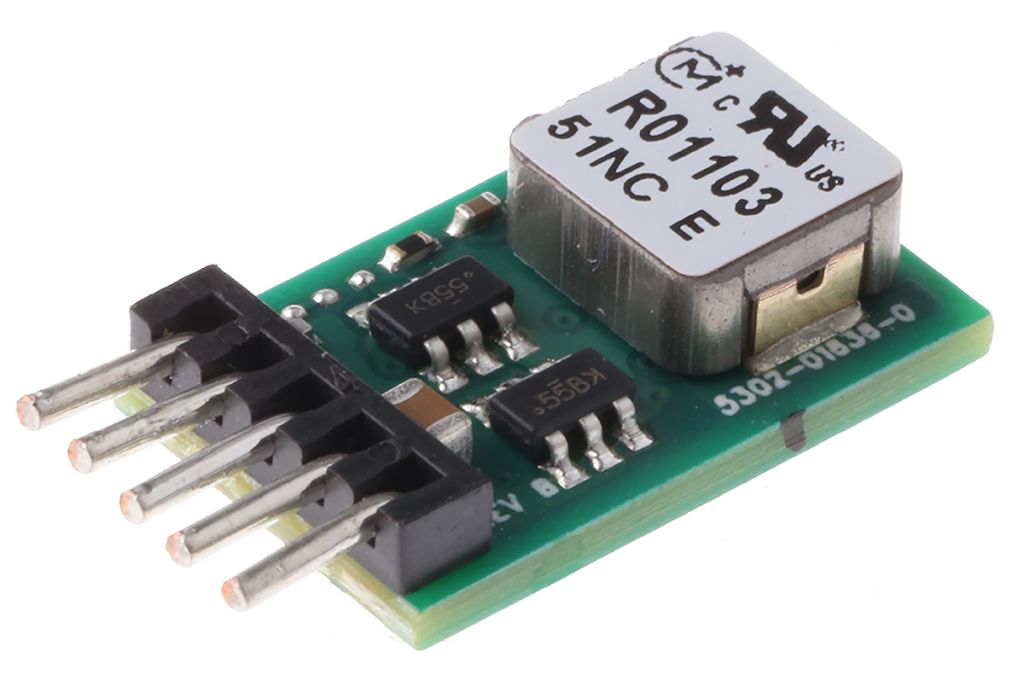

Non-Isolated DC-DC Converter, 0.59 → 6V dc Output, 3A

RS Stock No.:
6894722
Mfr. Prt No.:
OKR-T/3-W12-C
Brand:
Murata Power Solutions

Technical Reference


Legislation and Compliance

RoHS Certificate of Compliance

RS Components
RoHS Certificate of Compliance

EU Directives 2011/65/EU and 2015/863 restrict the use of the 10 substances below in the manufacture of specified types of electrical equipment.

Whilst this restriction does not legally apply to components, it is recognised that component “compliance” is relevant to many customers.

RS definition of RoHS Compliance:

  • The product does not contain any of the restricted substances in concentrations and applications banned by the Directive,
  • and for components, the product is capable of being worked on at the higher temperatures required by lead–free soldering

The restricted substances and maximum allowed concentrations in the homogenous material are, by weight:

SubstanceConcentration
Lead0.1%
Mercury0.1%
PBB (Polybrominated Biphenyls)0.1%
PBDE ( Polybrominated Diphenyl Ethers)0.1%
Hexavalent Chromium0.1%
Cadmium0.01%
DEHP (Bis (2-Ethylhexl) phthalate)0.1%
BBP (Benzyl butyl phthalate)0.1%
DBP (Dibutyl phthalate)0.1%
DIBP (Diisobutyl phthalate)0.1%

The supplier of the item listed below has informed RS Components that the product is "RoHS Compliant".

RS Components has taken all reasonable steps to confirm this statement. Information relates only to products sold on or after the date of this certificate.

Compliant Product Details
RS stock number 6894722
Product description Non-Isolated DC-DC Converter, 0.59 → 6V dc Output, 3A
Manufacturer / Brand Murata Power Solutions
Manufacturer part number OKR-T/3-W12-C

RS Components Ltd, Birchington Road, Corby, Northants, NN17 9RS, UK

Statement of Conformity

RS Components
Statement of Conformity

This statement confirms that the product detailed below complies with the specifications currently published in the RS media and has been subject to the strict quality conditions imposed by RS Components’ internal management systems. Furthermore and where applicable, it confirms that all relevant semiconductor devices have been handled and packed under conditions that meet the administrative and technical requirements of ANSI/ESD S20.20 and EN61340-5-1 electrostatics control standards.

Compliant Product Details
RS stock number 6894722
Product description Non-Isolated DC-DC Converter, 0.59 → 6V dc Output, 3A
Manufacturer / Brand Murata Power Solutions
Manufacturer part number OKR-T/3-W12-C

The foregoing information relates to product sold on, or after, the date shown below.

RS COMPONENTS

Date May 14, 2024

RS Components Pte Ltd Robinson Road, P.O. Box 1582, Singapore 903132


Product Details

Murata 3A Single Output Regulated Non-Isolated DC-DC Converter - OKR Series

Non-isolated (PoL) module
Wide input voltage range
Up to 3A output current
Adjustable output voltage via external resistors
Output ON/OFF inhibit
Output voltage sense
Over temperature and over current protection
SIP through hole package


Specifications

Attribute Value
Input Voltage Range 4.5 → 14 V dc
Brand Murata Power Solutions
Mounting Type Through Hole
Width 5.6 mm
Output Voltage 0.59 → 6 V dc
Depth 16.5 mm
Minimum Temperature -40 °C
Output Current 3 A
Number of Outputs 1
Maximum Temperature +85 °C
Input Voltage Nominal 12 V dc
Package SIP
Length 10.4 mm
Power Rating 15 W
Checking stock...
VND
193,781.76
Out of stock
Price Tape
Unit(s)Per Unit(VND)
1193,781.76
*price per unit indicative
