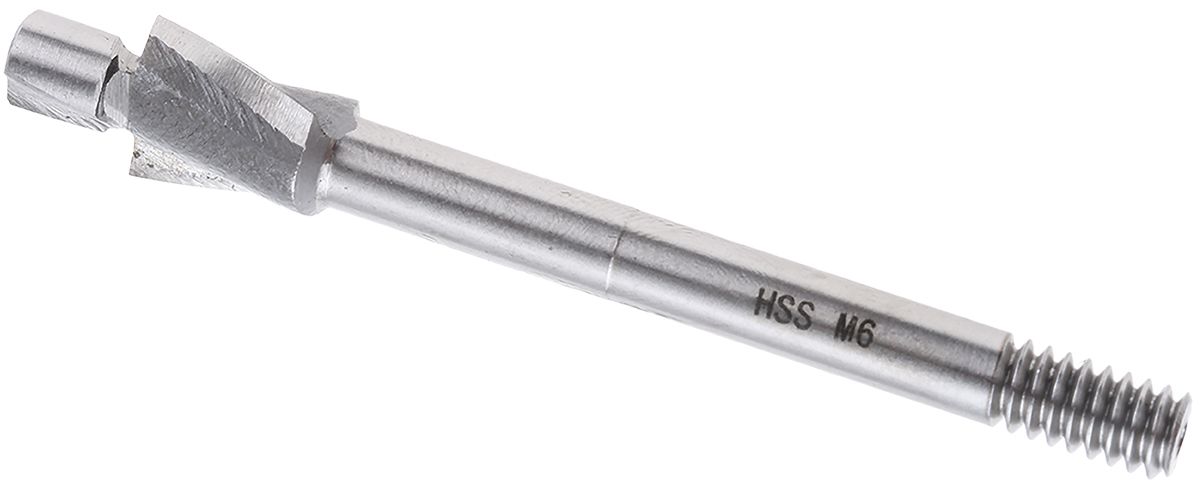

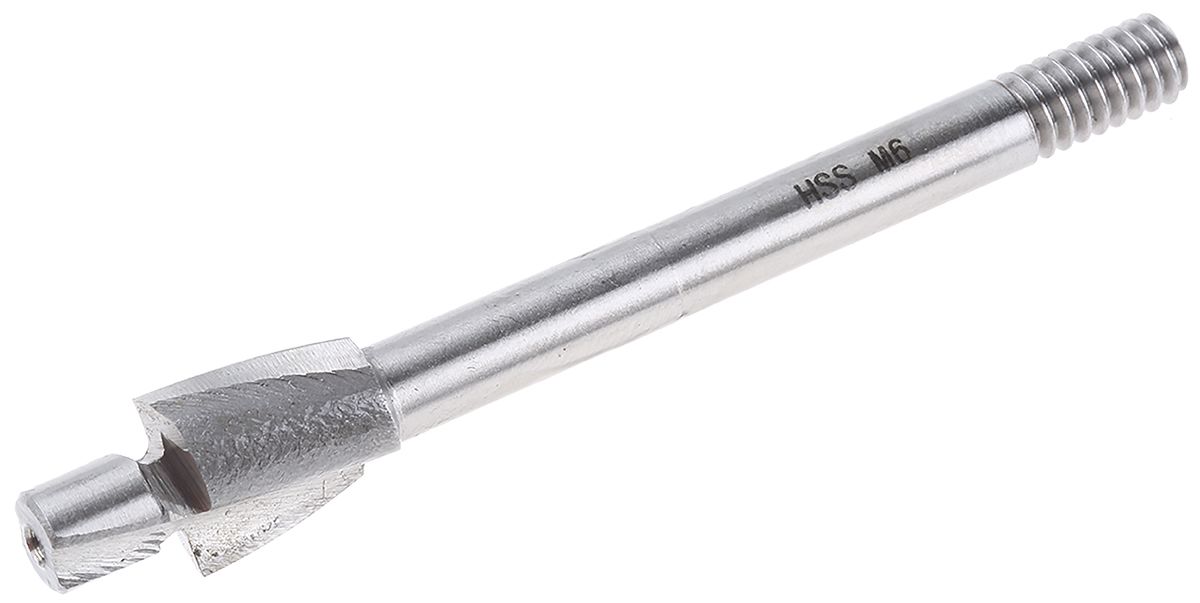

RS PRO Counterbore M6, 76 mm x 11mm Cut Diameter, 1 Piece

RS Stock No.:
5227446
Brand:
RS PRO

Technical Reference

Legislation and Compliance

RoHS Status: Not Applicable

Statement of Conformity

RS Components
Statement of Conformity

This statement confirms that the product detailed below complies with the specifications currently published in the RS media and has been subject to the strict quality conditions imposed by RS Components’ internal management systems. Furthermore and where applicable, it confirms that all relevant semiconductor devices have been handled and packed under conditions that meet the administrative and technical requirements of ANSI/ESD S20.20 and EN61340-5-1 electrostatics control standards.

Compliant Product Details
RS stock number 5227446
Product description RS PRO Counterbore M6, 76 mm x 11mm Cut Diameter, 1 Piece
Manufacturer / Brand RS PRO

The foregoing information relates to product sold on, or after, the date shown below.

RS COMPONENTS

Date Mar 29, 2024

RS Components Pte Ltd Robinson Road, P.O. Box 1582, Singapore 903132

Country of Origin: CN


Product Details

HSS - Auto-lock - Fastener Sizes, Counterbores

Right hand cutting counterbores designed to produce recessed holes for cap headed screws
Threaded shank

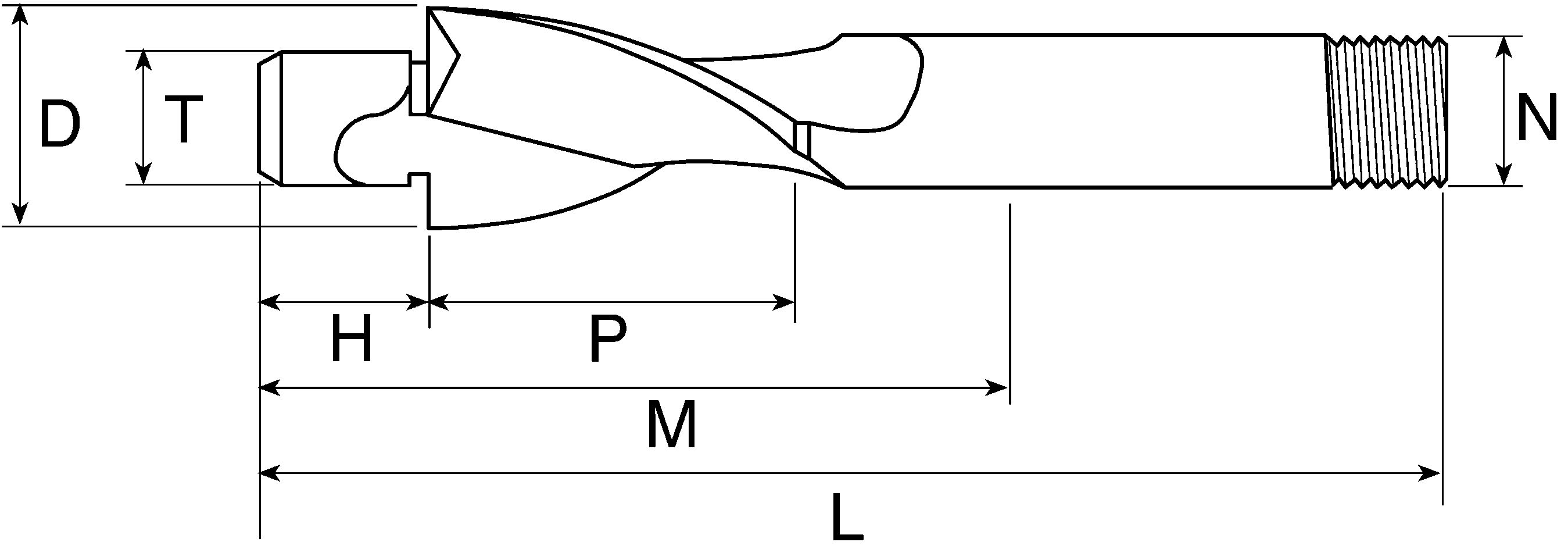

* Cutter Dimension D Tolerance = +0.013mm -0.05mm; ** Dimension T Tolerance = e8

L224500-02

Specifications

Attribute Value
Brand RS PRO
Number of Pieces 1
Overall Length 76 mm
Thread Size M6
Pilot Diameter 6.4 mm
Drill Bit Type Counterbore
Cutter Diameter 11 mm
Shank Type Screwed
Shank Diameter 6 mm
Pilot Length 8 mm
Cutter Length 12.5 mm
Material HSS
Checking stock...
VND
957,128.00
Out of stock
Price Each
Unit(s)Per Unit(VND)
1957,128.00
