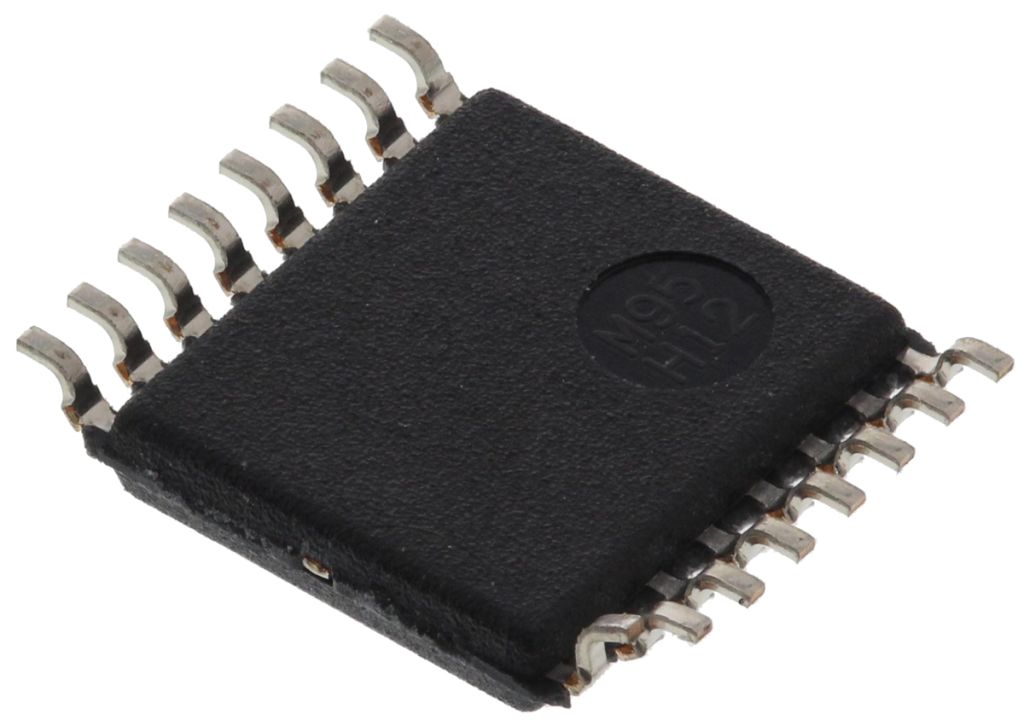

Texas Instruments SN74AVC4T245PW, Dual Bus Transceiver, 4-Bit Non-Inverting CMOS, 16-Pin TSSOP

RS Stock No.:
6631635
Mfr. Prt No.:
SN74AVC4T245PW
Brand:
Texas Instruments

Technical Reference

Legislation and Compliance

RoHS Certificate of Compliance

RS Components
RoHS Certificate of Compliance

EU Directives 2011/65/EU and 2015/863 restrict the use of the 10 substances below in the manufacture of specified types of electrical equipment.

Whilst this restriction does not legally apply to components, it is recognised that component “compliance” is relevant to many customers.

RS definition of RoHS Compliance:

  • The product does not contain any of the restricted substances in concentrations and applications banned by the Directive,
  • and for components, the product is capable of being worked on at the higher temperatures required by lead–free soldering

The restricted substances and maximum allowed concentrations in the homogenous material are, by weight:

SubstanceConcentration
Lead0.1%
Mercury0.1%
PBB (Polybrominated Biphenyls)0.1%
PBDE ( Polybrominated Diphenyl Ethers)0.1%
Hexavalent Chromium0.1%
Cadmium0.01%
DEHP (Bis (2-Ethylhexl) phthalate)0.1%
BBP (Benzyl butyl phthalate)0.1%
DBP (Dibutyl phthalate)0.1%
DIBP (Diisobutyl phthalate)0.1%

The supplier of the item listed below has informed RS Components that the product is "RoHS Compliant".

RS Components has taken all reasonable steps to confirm this statement. Information relates only to products sold on or after the date of this certificate.

Compliant Product Details
RS stock number 6631635
Product description Texas Instruments SN74AVC4T245PW, Dual Bus Transceiver, 4-Bit Non-Inverting CMOS, 16-Pin TSSOP
Manufacturer / Brand Texas Instruments
Manufacturer part number SN74AVC4T245PW

RS Components Ltd, Birchington Road, Corby, Northants, NN17 9RS, UK

Statement of Conformity

RS Components
Statement of Conformity

This statement confirms that the product detailed below complies with the specifications currently published in the RS media and has been subject to the strict quality conditions imposed by RS Components’ internal management systems. Furthermore and where applicable, it confirms that all relevant semiconductor devices have been handled and packed under conditions that meet the administrative and technical requirements of ANSI/ESD S20.20 and EN61340-5-1 electrostatics control standards.

Compliant Product Details
RS stock number 6631635
Product description Texas Instruments SN74AVC4T245PW, Dual Bus Transceiver, 4-Bit Non-Inverting CMOS, 16-Pin TSSOP
Manufacturer / Brand Texas Instruments
Manufacturer part number SN74AVC4T245PW

The foregoing information relates to product sold on, or after, the date shown below.

RS COMPONENTS

Date Mar 29, 2024

RS Components Pte Ltd Robinson Road, P.O. Box 1582, Singapore 903132


Product Details

74AVC Family

74AVC Family, Texas Instruments


Specifications

Attribute Value
Brand Texas Instruments
Logic Family AVC
Logic Function Bus Transceiver
Number of Elements per Chip 2
Number of Channels per Chip 4
Polarity Non-Inverting
Mounting Type Surface Mount
Package Type TSSOP
Pin Count 16
Input Level CMOS
Output Level CMOS
Maximum High Level Output Current -12 mA
Maximum Low Level Output Current 12 mA
Maximum Propagation Delay Time @ Maximum CL 6.3 ns @ 1.5 V
Minimum Operating Temperature -40 °C
Height 1.15 mm
Dimensions 5 x 4.4 x 1.15 mm
Propagation Delay Test Condition 15 pF
Maximum Operating Temperature +85 °C
Length 5 mm
Maximum Operating Supply Voltage 3.6 V
Width 4.4 mm
Minimum Operating Supply Voltage 1.2 V
Checking stock...
VND
184,801.00
Out of stock
Price Tube (1 Tube of 5)
Tube(s)Per Tube(VND)Per Unit(VND)
1184,801.0036,960.20
*price per unit indicative
