RS PRO 300mm Long EPDM 10 bar Flexible Hose

RS Stock No.:
7118495
Brand:
RS PRO

Technical Reference

Legislation and Compliance

RoHS Certificate of Compliance

RS Components
RoHS Certificate of Compliance

EU Directives 2011/65/EU and 2015/863 restrict the use of the 10 substances below in the manufacture of specified types of electrical equipment.

Whilst this restriction does not legally apply to components, it is recognised that component “compliance” is relevant to many customers.

RS definition of RoHS Compliance:

  • The product does not contain any of the restricted substances in concentrations and applications banned by the Directive,
  • and for components, the product is capable of being worked on at the higher temperatures required by lead–free soldering

The restricted substances and maximum allowed concentrations in the homogenous material are, by weight:

SubstanceConcentration
Lead0.1%
Mercury0.1%
PBB (Polybrominated Biphenyls)0.1%
PBDE ( Polybrominated Diphenyl Ethers)0.1%
Hexavalent Chromium0.1%
Cadmium0.01%
DEHP (Bis (2-Ethylhexl) phthalate)0.1%
BBP (Benzyl butyl phthalate)0.1%
DBP (Dibutyl phthalate)0.1%
DIBP (Diisobutyl phthalate)0.1%

The supplier of the item listed below has informed RS Components that the product is "RoHS Compliant".

RS Components has taken all reasonable steps to confirm this statement. Information relates only to products sold on or after the date of this certificate.

Compliant Product Details
RS stock number 7118495
Product description RS PRO 300mm Long EPDM 10 bar Flexible Hose
Manufacturer / Brand RS PRO

RS Components Ltd, Birchington Road, Corby, Northants, NN17 9RS, UK

Statement of Conformity

RS Components
Statement of Conformity

This statement confirms that the product detailed below complies with the specifications currently published in the RS media and has been subject to the strict quality conditions imposed by RS Components’ internal management systems. Furthermore and where applicable, it confirms that all relevant semiconductor devices have been handled and packed under conditions that meet the administrative and technical requirements of ANSI/ESD S20.20 and EN61340-5-1 electrostatics control standards.

Compliant Product Details
RS stock number 7118495
Product description RS PRO 300mm Long EPDM 10 bar Flexible Hose
Manufacturer / Brand RS PRO

The foregoing information relates to product sold on, or after, the date shown below.

RS COMPONENTS

Date May 17, 2022

RS Components Pte Ltd Robinson Road, P.O. Box 1582, Singapore 903132

Country of Origin: GB


Product Details

Fan Coil Hoses and Heating System Connectors

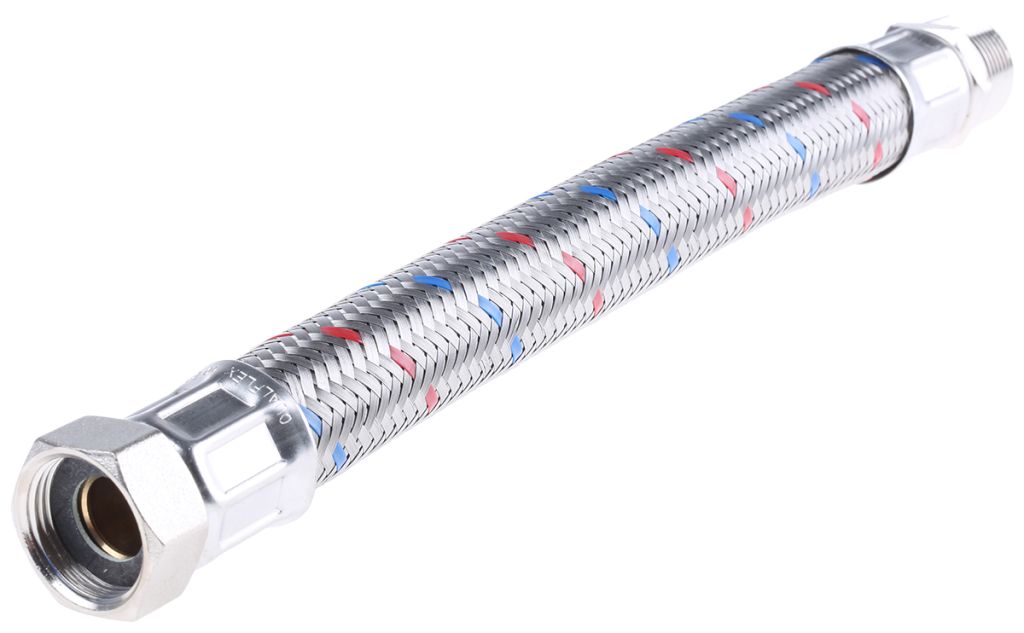

Braided stainless steel fan coil hose complete with traditional nut and olive compression fittings.,10 year service life. Suitable for Hot Water Systems, Chilled Beams, Fan Coil Units and Heating Systems and Pumps

Note

Not suitable for potable water

10 Year Service life
Stainless steel AISI 304 braid with red / blue marker
Non-toxic EPDM line hose
Non-corrosive stainless steel ferrules
End fittings brass EN12 164/5
Choice of end fittings


Specifications

Attribute Value
Brand RS PRO
Length 300 mm
Connection Size 2 3/4 in
Connection 1 3/4 in BSP Female
Connection Material 2 Brass
Maximum Working Pressure 10 bar
Connection 2 3/4 in BSP Male
Liner Material EPDM
Suitable Applications Air Conditioning, General Heating Applications, Ventilation
Connection Size 1 3/4 in
Connection Material 1 Brass
