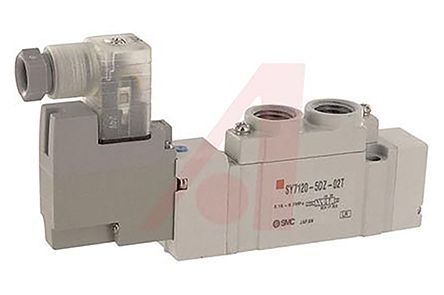

SMC 5/2 Pneumatic Solenoid/Pilot-Operated Control Valve – Solenoid/Pilot NPTF 1/4 SY7000 Series 24V dc
- RS Stock No.:
- 8393066
- Mfr. Prt No.:
- SY7120-5DZ-02T
- Brand:
- SMC
Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
Statement of Conformity
This statement confirms that the product detailed below complies with the specifications currently published in the RS media and has been subject to the strict quality conditions imposed by RS Components’ internal management systems. Furthermore and where applicable, it confirms that all relevant semiconductor devices have been handled and packed under conditions that meet the administrative and technical requirements of ANSI/ESD S20.20 and EN61340-5-1 electrostatics control standards.
| RS stock number | 8393066 |
| Product description | SMC 5/2 Pneumatic Solenoid/Pilot-Operated Control Valve - Solenoid/Pilot NPTF 1/4 SY7000 Series 24V dc |
| Manufacturer / Brand | SMC |
| Manufacturer part number | SY7120-5DZ-02T |
The foregoing information relates to product sold on, or after, the date shown below.
RS COMPONENTS
| Date | Apr 29, 2024 |
RS Components Pte Ltd Robinson Road, P.O. Box 1582, Singapore 903132
Country of Origin: JP
Product Details
SY7000 Valves
SY7000 solenoid valves are extremely compact and offer high flow rates. They operate with reduced power consumption and have a power saving circuit to ensure energy efficiency. The valve cover also uses stainless steel and is therefore stronger.
SMC SY Series
Specifications
| Attribute | Value |
| Brand | SMC |
| Minimum Operating Pressure | 0.15 MPa |
| Actuation Type | Solenoid/Pilot |
| Number of Ports | 5/2 |
| Solenoid Power Consumption | 0.55 W |
| Function | 5/2 |
| Body Material | Die Cast Aluminium |
| Solenoid Voltage | 24 V dc |
| Maximum Operating Temperature | +50 °C |
| Manufacturer Series | SY7000 |
| Solenoid Fitted | Yes |
| Connection Port Thread | NPTF 1/4 |
| Mounting Style | Manifold |
| Thread Size | 1/4 in |
| Maximum Operating Pressure | 0.7 MPa |
| Thread Standard | NPTF |
