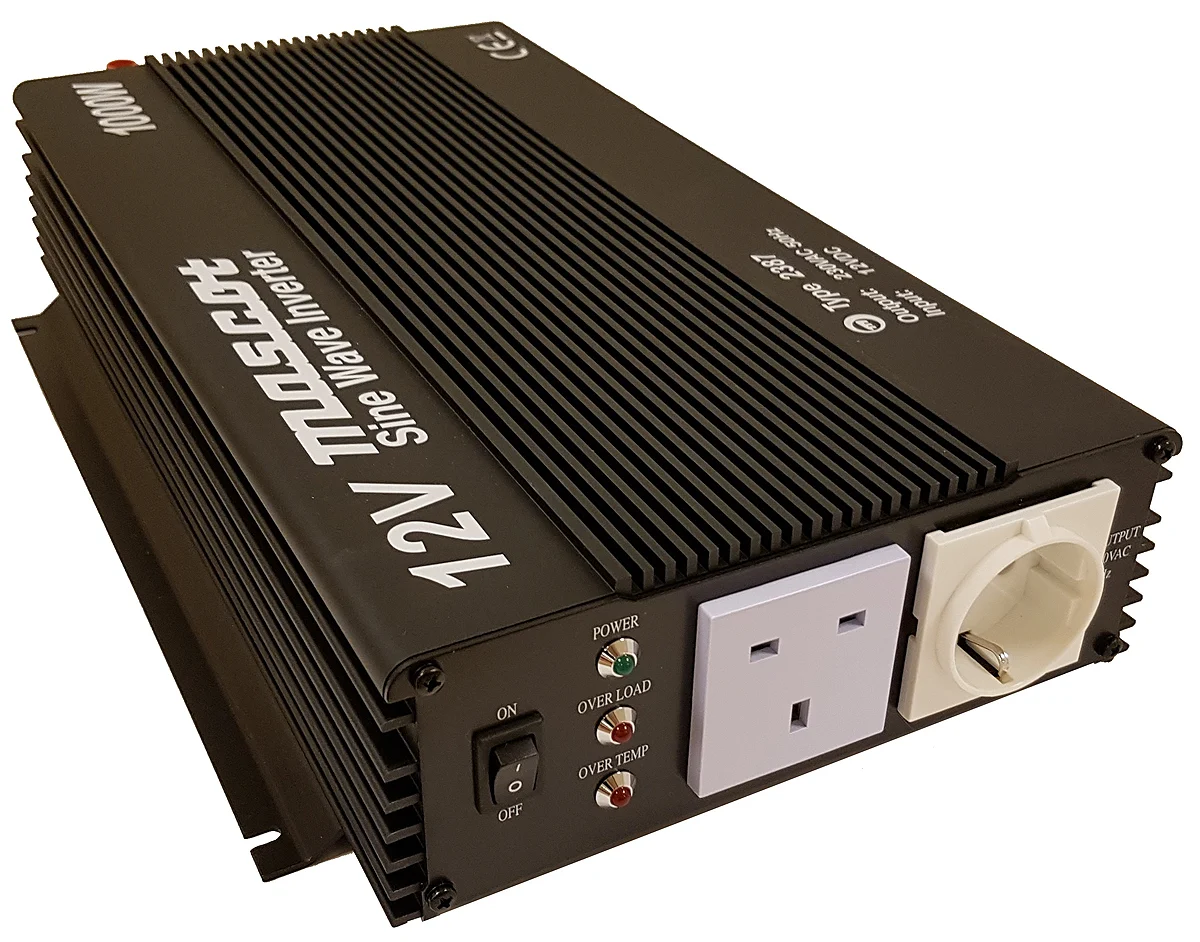

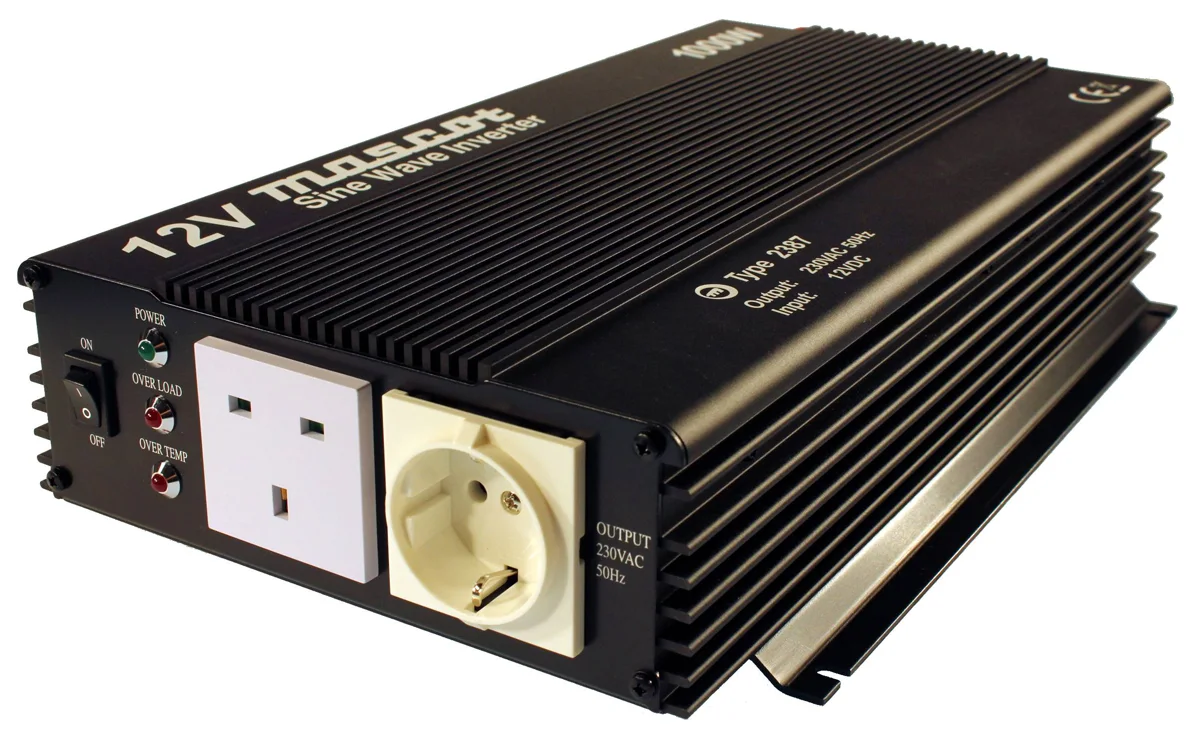

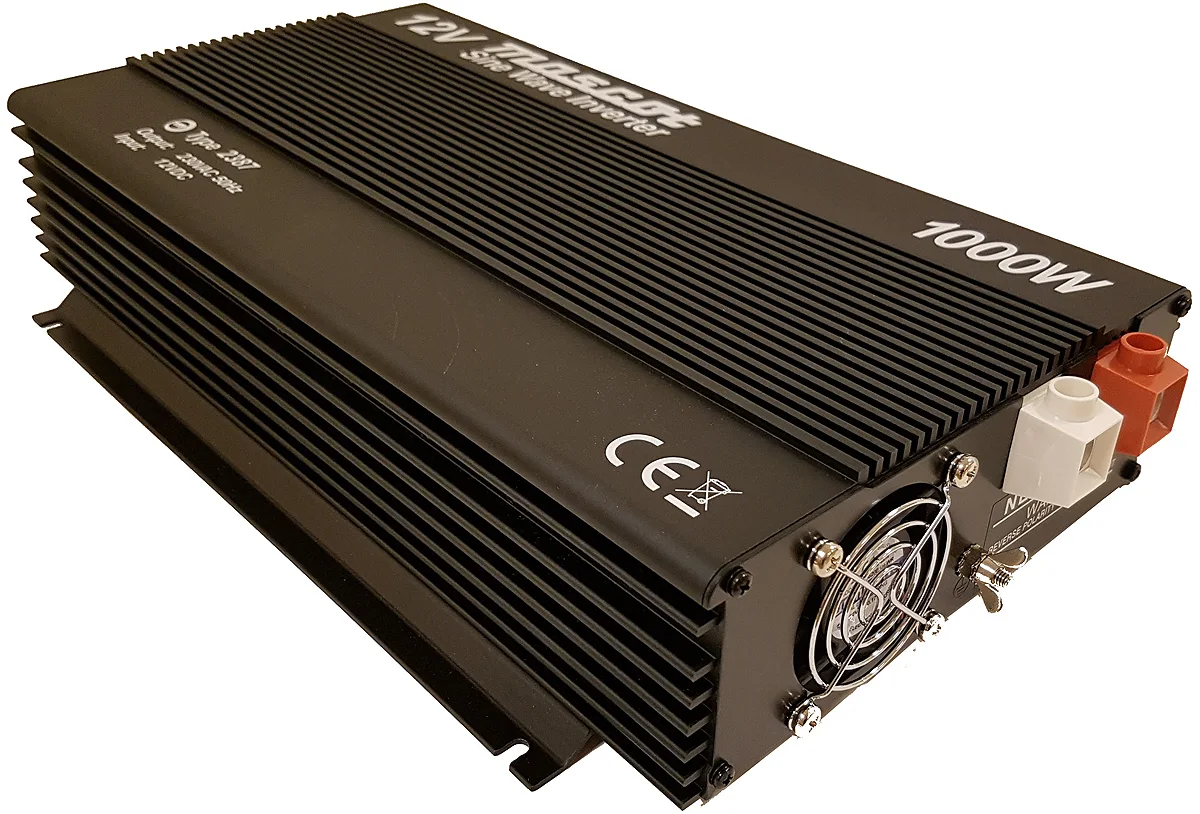

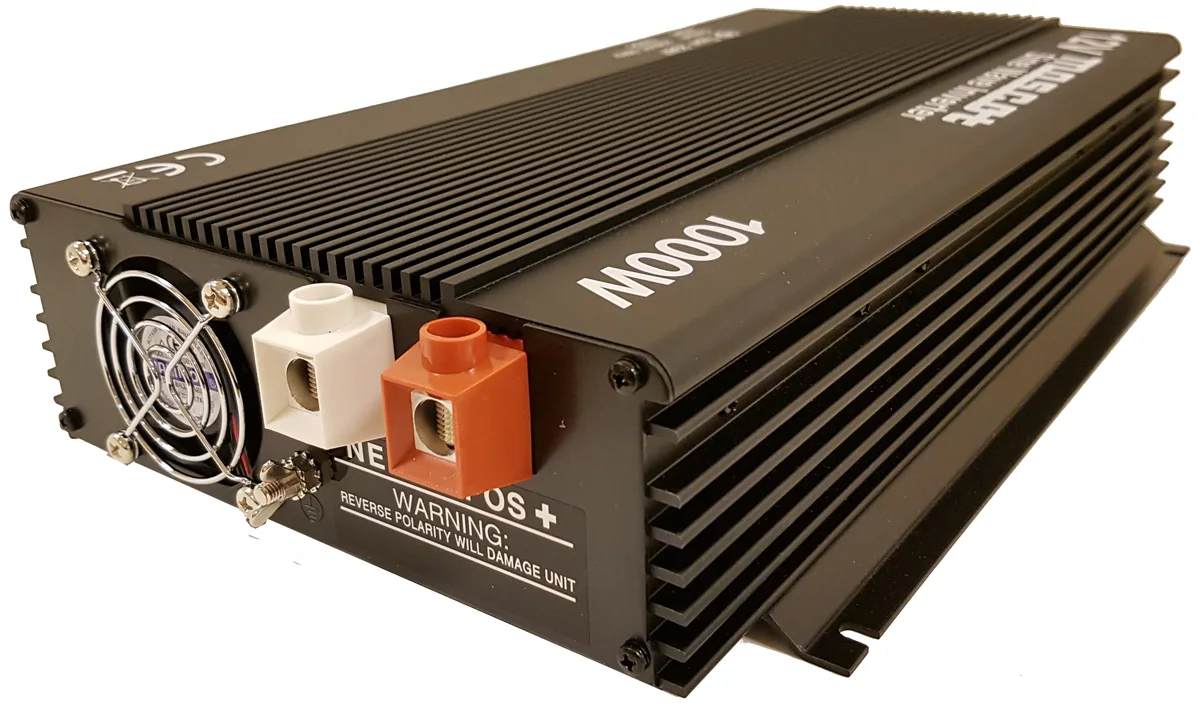

1000W DC-AC Car Power Inverter, 10 → 15V dc / 230V ac

RS Stock No.:
4682959
Mfr. Prt No.:
2387000040
Brand:
Mascot

Technical Reference

Legislation and Compliance

RoHS Certificate of Compliance

RS Components
RoHS Certificate of Compliance

EU Directives 2011/65/EU and 2015/863 restrict the use of the 10 substances below in the manufacture of specified types of electrical equipment.

Whilst this restriction does not legally apply to components, it is recognised that component “compliance” is relevant to many customers.

RS definition of RoHS Compliance:

  • The product does not contain any of the restricted substances in concentrations and applications banned by the Directive,
  • and for components, the product is capable of being worked on at the higher temperatures required by lead–free soldering

The restricted substances and maximum allowed concentrations in the homogenous material are, by weight:

SubstanceConcentration
Lead0.1%
Mercury0.1%
PBB (Polybrominated Biphenyls)0.1%
PBDE ( Polybrominated Diphenyl Ethers)0.1%
Hexavalent Chromium0.1%
Cadmium0.01%
DEHP (Bis (2-Ethylhexl) phthalate)0.1%
BBP (Benzyl butyl phthalate)0.1%
DBP (Dibutyl phthalate)0.1%
DIBP (Diisobutyl phthalate)0.1%

The supplier of the item listed below has informed RS Components that the product is "RoHS Compliant".

RS Components has taken all reasonable steps to confirm this statement. Information relates only to products sold on or after the date of this certificate.

Compliant Product Details
RS stock number 4682959
Product description 1000W DC-AC Car Power Inverter, 10 → 15V dc / 230V ac
Manufacturer / Brand Mascot
Manufacturer part number 2387000040

RS Components Ltd, Birchington Road, Corby, Northants, NN17 9RS, UK

Statement of Conformity

RS Components
Statement of Conformity

This statement confirms that the product detailed below complies with the specifications currently published in the RS media and has been subject to the strict quality conditions imposed by RS Components’ internal management systems. Furthermore and where applicable, it confirms that all relevant semiconductor devices have been handled and packed under conditions that meet the administrative and technical requirements of ANSI/ESD S20.20 and EN61340-5-1 electrostatics control standards.

Compliant Product Details
RS stock number 4682959
Product description 1000W DC-AC Car Power Inverter, 10 → 15V dc / 230V ac
Manufacturer / Brand Mascot
Manufacturer part number 2387000040

The foregoing information relates to product sold on, or after, the date shown below.

RS COMPONENTS

Date Mar 29, 2024

RS Components Pte Ltd Robinson Road, P.O. Box 1582, Singapore 903132

Country of Origin: CN


Product Details

Pure Sine Wave, 300 to 1000W 3 Pin UK & Schuko Output Sockets

CAUTION : The user is responsible for ensuring the suitability of any equipment connected to these power adaptors - protect from moisture.

230Vac output voltage from 12Vdc or 24Vdc battery
Output connection via 3-pin UK or Schuko sockets or combined
Input low voltage, input over voltage, low battery alarm, over temperature, overload protection (with indicators) and short circuit proof
Power up TV/Video, appliances, battery chargers (laptops, mobile phones), instruments, tools and other equipment with electrical motors, particularly inductive loads
'E' approved for vehicle applications, directive ref. 95/54/EC


Specifications

Attribute Value
Brand Mascot
Input Voltage 10 → 15 V dc
Width 238 mm
Output Power Waveform Pure Sine Wave
Depth 83 mm
Efficiency 90 %
Weight 4 kg
Output Voltage 230 V ac
MTBF 55000 h
Output Connection Type British 3-pin, Schuko Socket
Output Power Intermittent 2000 W
Output Power Continuous 1000 W
Length 370 mm
Checking stock...
VND
16,234,614.00
Out of stock
Price Each
Unit(s)Per Unit(VND)
116,234,614.00
*price per unit indicative
