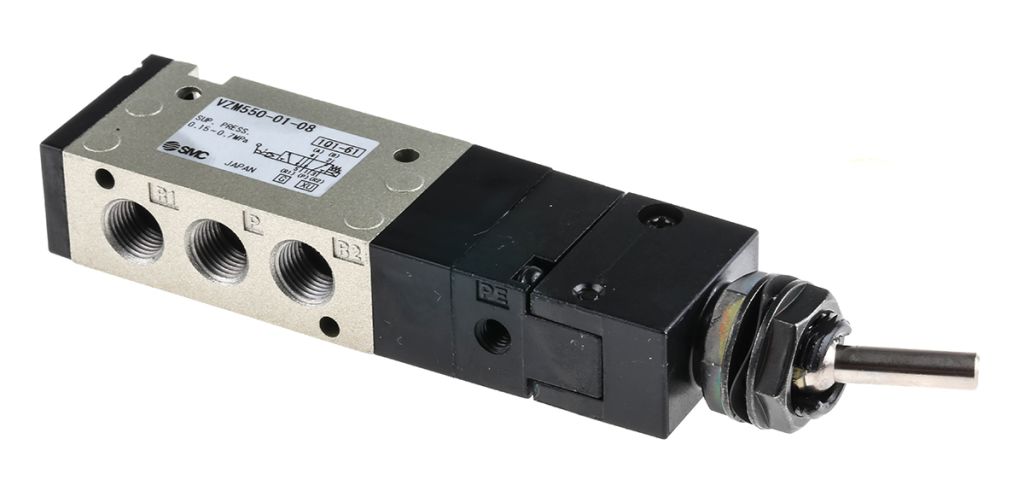

SMC Toggle Lever 5/2 Pneumatic Manual Control Valve VZM500 Series

RS Stock No.:
1931450
Mfr. Prt No.:
VZM550-01-08
Brand:
SMC

Technical Reference

Legislation and Compliance

RoHS Status: Not Applicable

Statement of Conformity

RS Components
Statement of Conformity

This statement confirms that the product detailed below complies with the specifications currently published in the RS media and has been subject to the strict quality conditions imposed by RS Components’ internal management systems. Furthermore and where applicable, it confirms that all relevant semiconductor devices have been handled and packed under conditions that meet the administrative and technical requirements of ANSI/ESD S20.20 and EN61340-5-1 electrostatics control standards.

Compliant Product Details
RS stock number 1931450
Product description SMC Toggle Lever 5/2 Pneumatic Manual Control Valve VZM500 Series
Manufacturer / Brand SMC
Manufacturer part number VZM550-01-08

The foregoing information relates to product sold on, or after, the date shown below.

RS COMPONENTS

Date Mar 28, 2024

RS Components Pte Ltd Robinson Road, P.O. Box 1582, Singapore 903132

Country of Origin: FR


Product Details

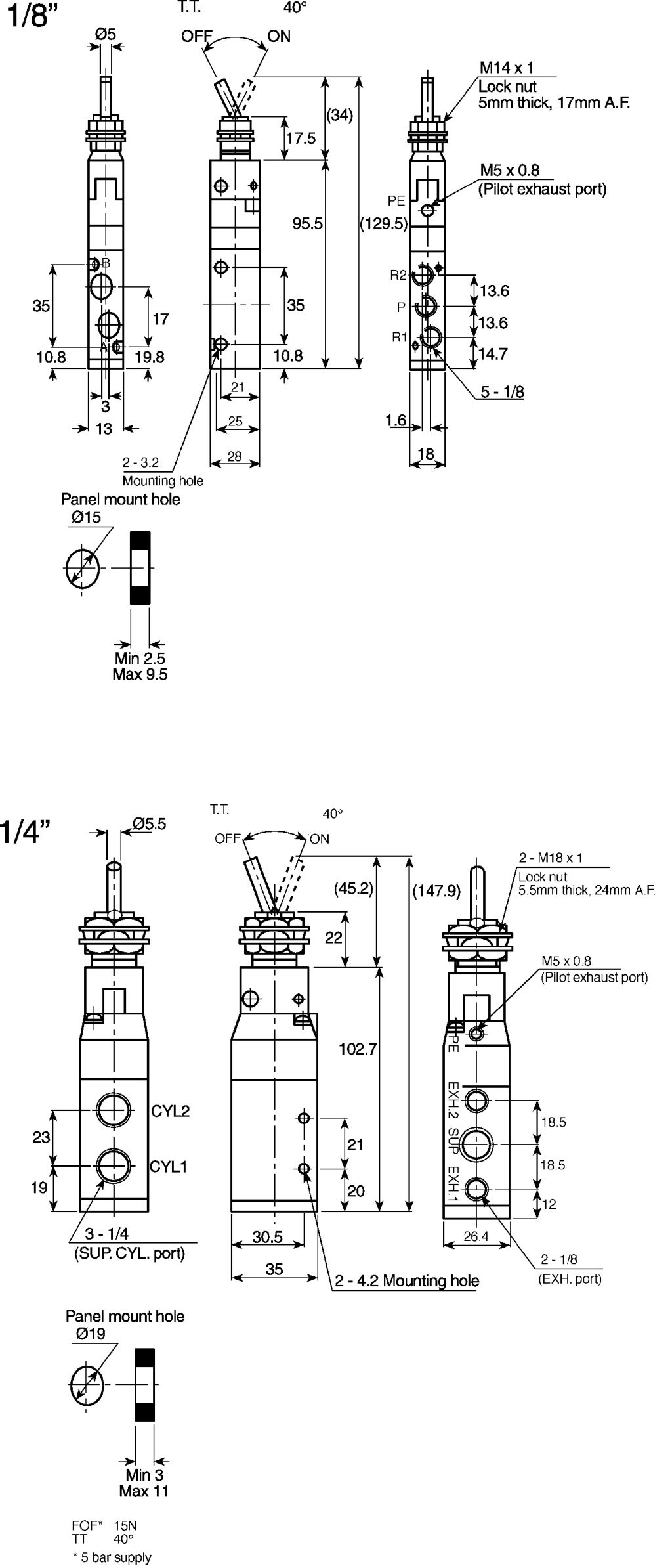

L268847-02L268847-01

Specifications

Attribute Value
Brand SMC
Function 5/2
Body Material ADC
Minimum Operating Temperature -5 °C
Maximum Operating Temperature +60 °C
Control Mechanism Toggle Lever
Manufacturer Series VZM500
Thread Size 1/8 in
Connection Port Thread Rc 1/8
Maximum Operating Pressure 0.7 MPa
Thread Standard Rc
Number of Ports 5/2
